XMM001-3500N (3500KV)

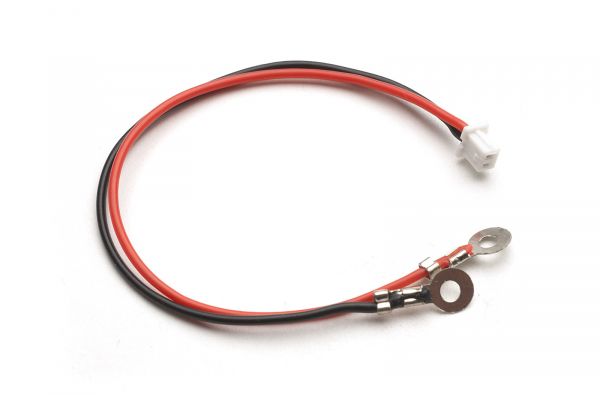

• ET009-S EasyLap Connect Cable Mini-Z Sports

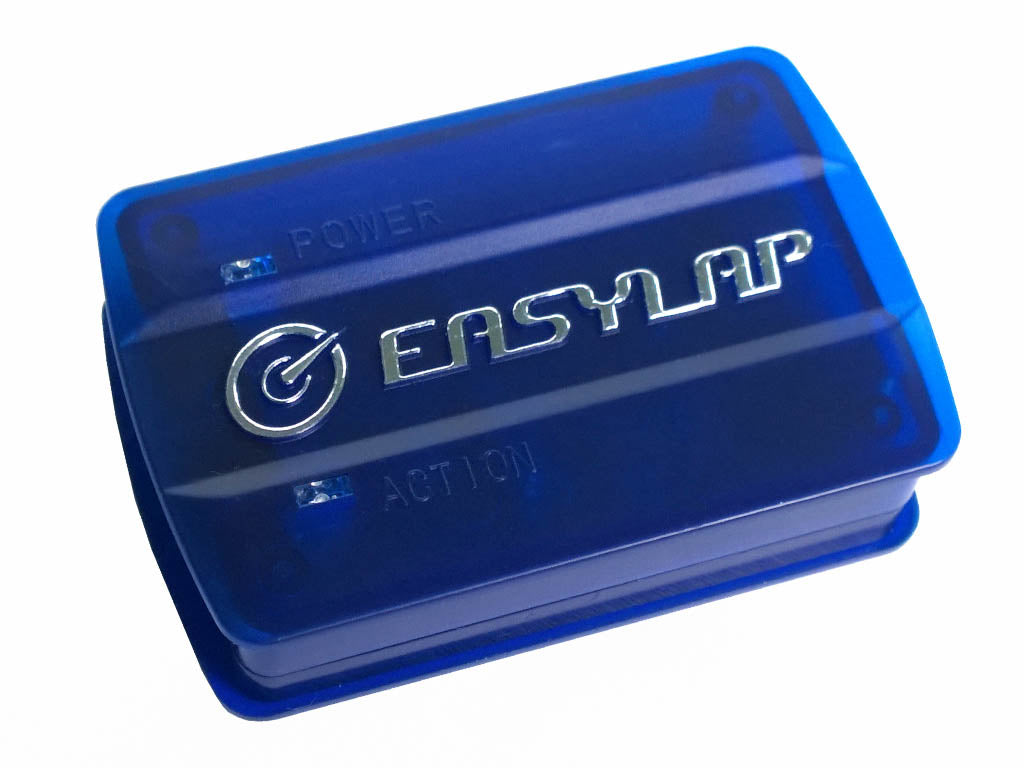

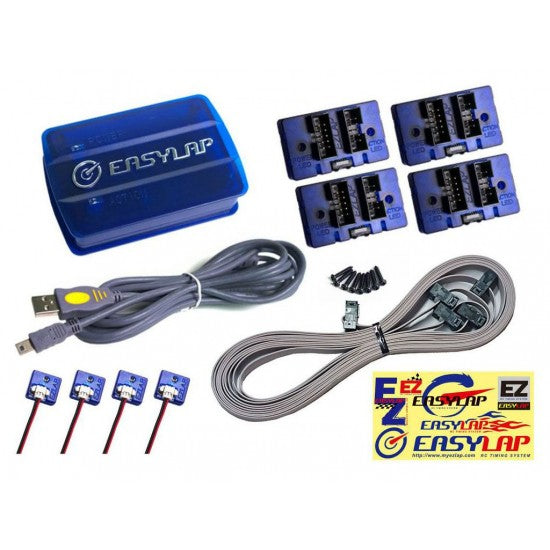

EASYLAP USB LAP COUNTER-(With Transponders)

EasyLap RC Timing System-USB Interface

No Power Supply Required

For All The Mini RC Cars(Unlimited Cars)

With Free Race Software(Multi-Language)

Small Personal Transponder (includes 4)

For Indoor & Outdoor Tracks Use

Includes:

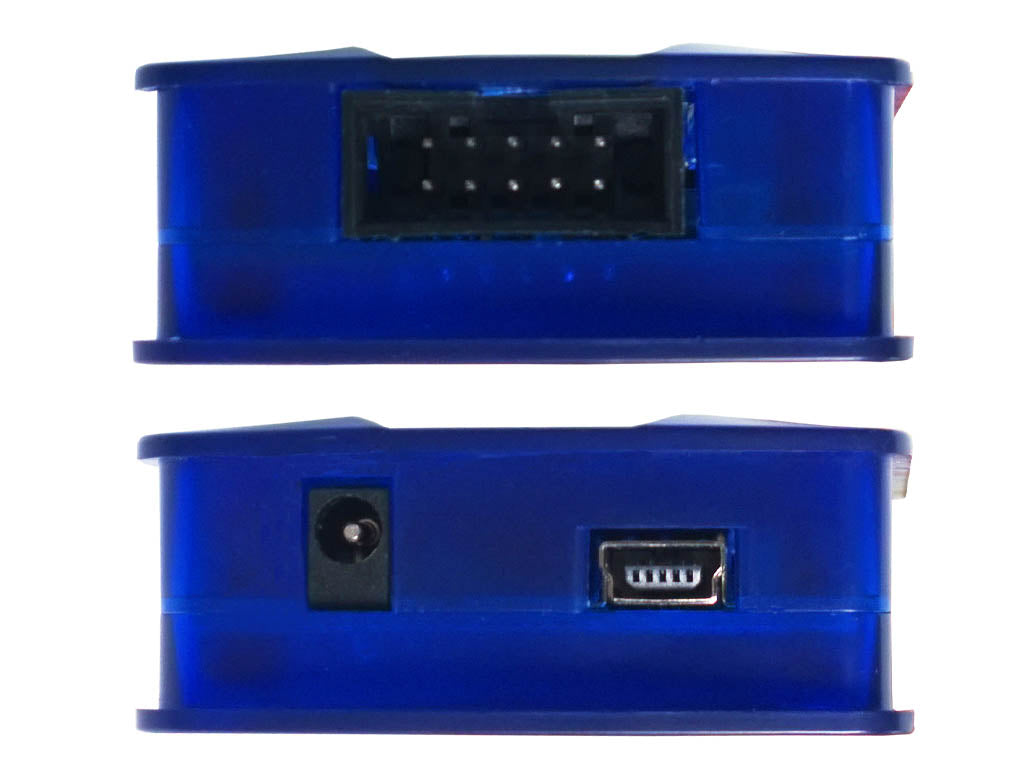

• USB Module
• Sensor cable
• IR Sensors (4)
• USB Adapter Cable
• 4 Transponders

EZL02

Android version Bluetooth adaptor for remotely access Swave-E2 / W / W2 to change the parameter and firmware update, also telemetry monitors the battery voltage / ESC temperature/throttle and motor rpm, without leaving the driver stand

BLUETH2

ENSO BLUETH-2 designed or IOS user, easily and remotely access your ESC to change the parameter and firmware update wirelessly, also telemetry monitors the battery voltage / ESC temperature/throttle and motor rpm, without leaving the driver to stand.

An advantage of the unbelievable micro size you can place it anywhere inside the car.

Each Bluetooth adaptor has its unique ID and password, prevent to mess up with other drivers' phones.

* Micro Size

* Low energy Bluetooth

* Wireless setting

* Wireless firmware update

* Telemetry monitor the battery voltage / ESC temperature / throttle / rpm

Support ESC: Swave-E2 / Swave-W / Swave-W2 (doesn't support Swave-E)

System Support: iPhone 7 or later / IPAD Pro or later

PCB Size: 1cm*1cm (exclude cables)

Different to use Android version "ENSO BLUETH" and IOS version ENSO BLUETH-2 on IOS device;

IOS has its own password protocol then the Android, if use Android version "ENSO BLUETH" on IOS device although there is no problem if you are the first time to establish the connection, if trying to reconnect again it’s prohibited by IOS system, you have to remove the "ENSO BLUETH" from the phone system then go back to Swave apps to search your "ENSO BLUETH" and input password again like you are the first time to establish the connection. To use ENSO BLUETH-2 is no longer repeating the process.

ENSO BLUETH-2 may communicate with some Android devices but Ensotech cannot guarantee and we cannot make its work on all kinds of Androids. If you are using Android device please purchase the Android version - ENSO BLUETH

About IOS Swave apps

Swave Apps IOS final version is still under development. This beat version is available under the apple "test flight" program. This is a developer program that allows users to test the apps for developers. Please note this beat version is still at the elementary level, it doesn't have the full features compare to the Android version, an example it doesn't have the “power switch mode” features. If you are interested to use the apps please email your Apple ID email address to us info@ensotech.com. You will receive an invitation email within 24 hours Monday to Friday request to download the Apple "Test Flight apps" from Apple App Store, after installed there is a Swave apps icon inside the test flight apps, click the icon to download the Swave app from App Store then start to use. During the process will require to do the registration.

SWAVEE2

Swave-E2 Sensored Electronic Speed Controller (ESC) makes technology essential to your modern mini R/C car.

Archived by many racers and podium finishes from the previous Swave-E. Swave-E2 has been completely re-engineered for optimal use, better heating dissipation, increased power output and better protection against certified sensored motors, ideally to use on microscale 1:28 RWD touring car with liner driving style, drifting and stock class race championship.

** If using metal Chassis recommended using Swave-W / W2

Enjoy the best value versus performance ratio, size, weight, technology as well as other advantages.

Features

"Blinky-mode" provides a fair racing environment between racers. (Shows that all timing advance switched to zero)

Stunning size and weight

Easy-to-use programming

Firmware update available

A professional set of customized parameters for the difficult race track

Automatic recognition of Hall sensor’s position

Settings configurations export and import. (You can save and load configuration or share out)

Aluminum body

*****Motor Compliance:

The Swave series of electronic speed controllers (ESC) uses a very unique, groundbreaking and revolutionary patented technology, which only Ensotech masters. This precision technology requires very careful and specific engineering process for sensored motors and demand the use of high-quality motor components (i.e. sensor, PCB, stator, winding etc..) coupled with the accuracy of the motor’s build and timing ‘tuning’. Ensotech certified motors meet all the manufacturing and quality control criteria imposed by Ensotech, and would guarantee the best performance of your Swave series ESC. The use of non-Ensotech certified motors, shall immediately void the Ensotech warranty.

Firmware update and change setting via Android version swave apps

Optional UARTLINK-II programming cable

Optional wireless EnsoBlueth Bluetooth adaptor

Firmware update and change setting via IOS ((beta test flight version)) swave apps

Optional wireless EnsoBlueth2 Bluetooth adaptor

Optional power connector to battery (JST-PH) OR (MR-30 male) + (MR-30 Female)

Specification:

* Dimensions (mm): 21.8(L)*12.7(W)*7.8(H)

* Weight: 3.3g

* Supply Voltage: 2s LiPo / 2s LiOn

* Const./Brust Current (A): 14/20A (under 90 degree Celsius)

* Sensor input: 1 (5 pins)

* Programming input: 1

* Receive input: 1

* Support motor type (Sensored): Slotless 1528 Brushless DC up to 3500kv

* Support motor type (Sensorless): Slotless 1528mm Brushless DC

* BEC Output: 5.5V / 1.0A

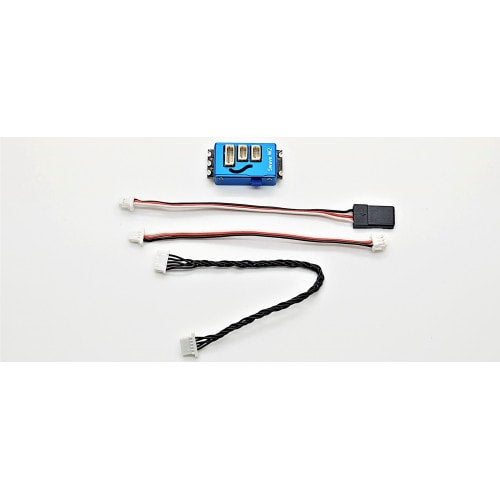

Package Included:

1* Swave-E2 Electronic Speed Controller

1* Receiver Cable (JST)

1* Receiver Cable (JR)

1* Motor Sensor Cable (product code: CABLE06)

Swave-W2 Sensored Electronic Speed Controller makes technology essential to your modern mini R/C car.

The principle of W2 to enhance heating dissipation. Used high watts thermal PAD, more copper inside PCB for current flow optimization, and the length of PCB increased 1mm compared to W.

Besides, the schematic has also been re-engineered to improved control of Bluetooth power..... ready for future gadget tech.

Ideally to use on microscale 1:28 RWD and shaft drive AWD touring car who needs liner and responsiveness on drifting and touring race. Enjoy the best value versus performance ratio, size, weight, technology as well as other advantages.

Features

"Blinky-mode" provides a fair racing environment between racers. (Shows that all timing advance switched to zero)

Stunning size and weight

Easy-to-use programming

Firmware update available

A professional set of customized parameters for the difficult race track

Automatic recognition of Hall sensor’s position

Settings configurations export and import. (You can save and load configuration or share out)

Aluminum body

Firmware update and change setting via Android version swave apps

Optional UARTLINK-II programming cable

Optional wireless EnsoBlueth Bluetooth adaptor

Optional power connector to battery (JST-PH) OR (MR-30 male) + (MR-30 Female)

Specification:

* Dimensions (mm): 26.00(L)*13.20(W)*7.86(H)

* Weight: 4.5g

* Supply Voltage: 2s LiPo / 2s LiOn

* Const./Brust Current (A): 20/30A (under 90 degree Celsius)

* Sensor input: 1 (5 pins)

* Programming input: 1

* Receive input: 1

* Support motor type (Sensored): Slotless 15mm Brushless DC up to 7500kv

* Support motor type (Sensorless): Slotless 15mm Brushless DC

* BEC Output: 5V / 1.5A

Package Included:

1* Swave-W2 ESC

1* Receiver Cable (JST)

1* Receiver Cable (JR)

1* Motor Sensor Cable (product code: CABLE06)

Motor Compliance:

The Swave series of electronic speed controllers (ESC) uses a very unique, groundbreaking, and revolutionary patented technology, which only Ensotech masters. This precision technology requires a very careful and specific engineering process for sensored motors and demands the use of high-quality motor components (i.e. sensor, PCB, stator, winding, etc..) coupled with the accuracy of the motor’s build and timing ‘tuning’. Ensotech certified motors meet all the manufacturing and quality control criteria imposed by Ensotech and would guarantee the best performance of your Swave series ESC. The use of non-Ensotech certified motors shall immediately void the Ensotech warranty.

Ensotech does not impose any restrictions on the use of sensorless 1528 sized brushless motor with the Swave series ESC.
