Spare parts for NEXX RACING V-LINE front suspension system

Included: 2 x lock nuts and 2 x King Pin

DESCRIPTION

New NEXX RACING precision CNC SWISS aluminum 7075 T6 motor mount is designed to replace stock plastic Kyosho Mini-Z motor mount and to support round brushless motors. It is designed for MR-03RM/ MR02RM/015 RM (wheelbase 90mm to 94mm). NEXX Racing motor mount is very light weight even more than 20% lighter than plastic version, yet very strong, made from aerospace aluminum 7075 T6

Specifications:

Weight: 5.1g (without T-plate)

Designed for Kyosho Mini-Z 90 and 94mm RM chassis ( 90mm to 94mm wheelbase rear motor ), 15mm round diameter brushless motors (Rocket, Ensotech, PN Racing, GL Racing, Atomic brushless motors ….)

Features:

Lowest CG motor mount on the market

The new motor mount is designed for the Mini-Z brushless motors. A lot of hours of engineering have been put into this motor to lower the C.G to lowest possible. You cannot go lower than this.

Lightest motor mount on the market

Besides being the lowest CG motor mount on the market, it is also the lightest weight motor mount on the market with just 5.1g in weight with carbon fiber T-plate and screws and only 5.1g without the carbon fiber T-plate, more than 20% lighter than stock plastic motor mount. To achieve this milestone, we have to machine the motor mount from a block of billet SWISS 7075 aluminum to minimize the number of parts, resulting the lightest weight possible.

Innovative slot design to allow easy adjusting gear mesh

Adjusting gear mesh is not always an easy job, however with NEXX innovative method of adjusting the gear mesh, it’s very simple, fool-proof one screw driver operation.

Innovative carbon support design

NEXX solves the problem of motors being ejected from crashes by a new method of lockup and hold the motor in secured position so that in hardest crashs, the motor cannot be ejected from the chassis.

Free carbon fiber T-plate

NEXX Racing motor mount also comes with a free high quality carbon fiber #5T-plate. Free of charge

Free alu 7075-T6 damper posts

NEXX Racing motor mount also comes with alu damper posts free of charge.

Easy center shock height adjustment

NEXX Racing motor mount offers the ability to adjust the height of center shock.

The package includes:

1 x Precision CNC SWISS 7075 T6 aluminum motor mount

4 x eccentric bearing holders to allow height adjustment of the motor mount.

1 x alu damper post

1 x carbon fiber T-plate #5 (strongest)

SKYLINE CONSTRUCTION MANUAL – CLICK HERE->

Are you ready for a new open class; the supercharged mini-Z lipo class? NEXX RACING team is delighted to release a new lipo conversion chassis for Mini-Z 1:28 scale cars called the SKYLINE. The SKYLINE lipo conversion chassis is a conversion kit that takes all electronics of the mini-Z and converts the mini-Z from 4 x AAA ni-Mh batteres to 2 x lipo batteries version. With dual 2S lipo batteries, the mini-Z is like twin-power charged with much stronger power and also twice as long lasting race time.

The lipo batteries are mounted well balance on both sides of the frame with better stability in cornering.

Easy carbon fiber battery compartment door for easy installation and removal of batteries.

Top frame has empty spaces to allow multiple electronics mounting and extra weights to adjust C.G.

Total weight of car with dual 2s 350mAh batteries is only 140g, incredibly 10g lighter than stock car.

Compatible with NEXX V-LINE front suspension system and PN Racing Double A-Arm and most motor mounts on the market for 90-102mm Wide wheel base.

Recommended electronics:

ESC: PN, ENSOTECH, ATOMIC, GL, KYOSHO;
SERVO : Stock mini-Z servo gears and KYOSHO main board, PN RACING servo board, other servo boards that are taken off from micro servos…
MOTOR : All 1/28 motors on the market that fit your motor mount you are using.
BODY: can use plastic hard bodies or lexan bodies
CENTER SHOCK AND DAMPER: KYOSHO, NEXX, PN center shocks.
BATTERIES: GL Racing batteries, any 2s batteries that fits battery compartment 20x 40x 11.5mm

V-LINE-FULL MANUAL

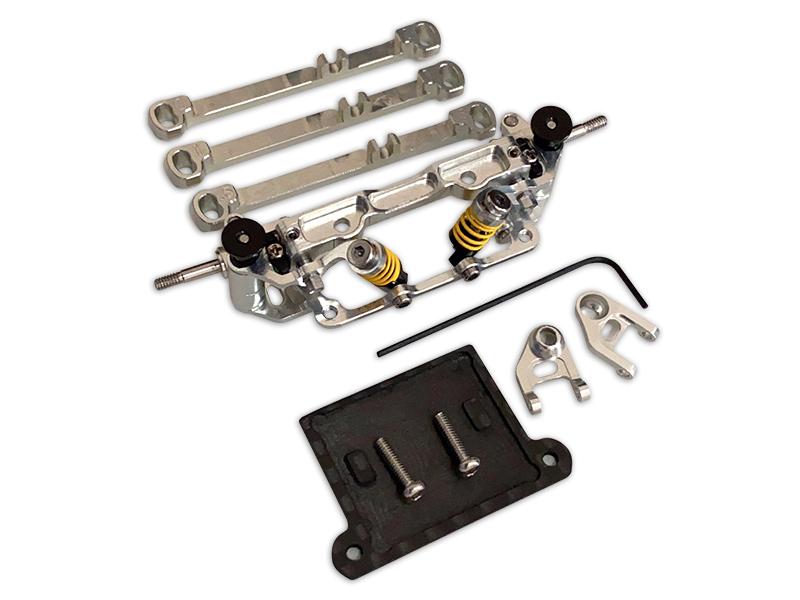

NEXX RACING V-line Front Suspension system is designed with innovative features such as quick adjustable caster, quick adjustable camber, adjustable ride height…. It makes the Mini-Z looks much like a real car, not only fast but also stable, better cornering and better suspension overall. With locknuts and kingpins, V-LINE is designed to minimize most of the play resulting very smooth performance. The V-LINE suspension systems fits only Mini-Z MR03 wide base models and also fits PN 2.5 Chassis. For easy assembly, we pre-install the V-LINE suspension system at factory so it’s very easy and fast to assembly it on the Mini-Z.

COLOR: SILVER

V-LINE SUSPENSION SYSTEM FEATURES

• V- line suspension is designed with 2 V-shaped suspension forks to bring you a cool suspension system·
• Same width as stock. (MR02/ MR03 PNR2.5W Chassis width)·
• Suspension movement use ball joints instead of sliding knuckle and locknut easy adjustment play between knuckle and upper arm make joints will not pop out even during hard collision.·
• Adjustable camber from 0-3⁰ degrees with 4 position eccentric shaft with easy operation·
• Quick adjustable caster by caster bar from 0-1.9⁰ ·
• Both 0⁰ and 1⁰ lower A arms provided to facilitate suspension setup·
• Ride height adjustment with turn of a screw·
• All 3 tie rods 0⁰, 0.5⁰, 1⁰ included ·
• High quality Precision CNC Swiss 7075 aluminum

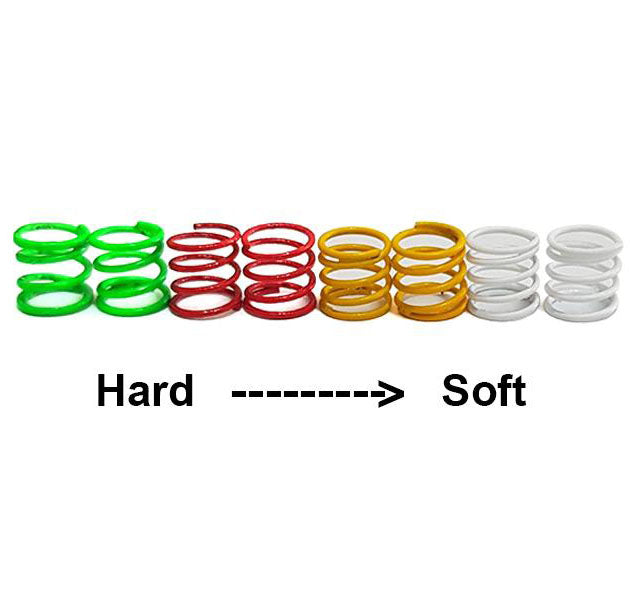

Include four sets (8pcs) of different hardness Springs for V-Line Suspension System, each hardness comes with different colors.

SKYLINE CONSTRUCTION MANUAL – CLICK HERE->

Are you ready for a new open class; the supercharged mini-Z lipo class? NEXX RACING team is delighted to release a new lipo conversion chassis for Mini-Z 1:28 scale cars called the SKYLINE. The SKYLINE lipo conversion chassis is a conversion kit that takes all electronics of the mini-Z and converts the mini-Z from 4 x AAA ni-Mh batteres to 2 x lipo batteries version. With dual 2S lipo batteries, the mini-Z is like twin-power charged with much stronger power and also twice as long lasting race time.

The lipo batteries are mounted well balance on both sides of the frame with better stability in cornering.

Easy carbon fiber battery compartment door for easy installation and removal of batteries.

Top frame has empty spaces to allow multiple electronics mounting and extra weights to adjust C.G.

Total weight of car with dual 2s 350mAh batteries is only 140g, incredibly 10g lighter than stock car.

Compatible with NEXX V-LINE front suspension system and PN Racing Double A-Arm and most motor mounts on the market for 90-102mm Wide wheel base.

Recommended electronics:

ESC: PN, ENSOTECH, ATOMIC, GL, KYOSHO;
SERVO : Stock mini-Z servo gears and KYOSHO main board, PN RACING servo board, other servo boards that are taken off from micro servos…
MOTOR : All 1/28 motors on the market that fit your motor mount you are using.
BODY: can use plastic hard bodies or lexan bodies
CENTER SHOCK AND DAMPER: KYOSHO, NEXX, PN center shocks.
BATTERIES: GL Racing batteries, any 2s batteries that fits battery compartment 20x 40x 11.5mm
