GLA-S020

Here's a rewritten and polished version of the ESC description:

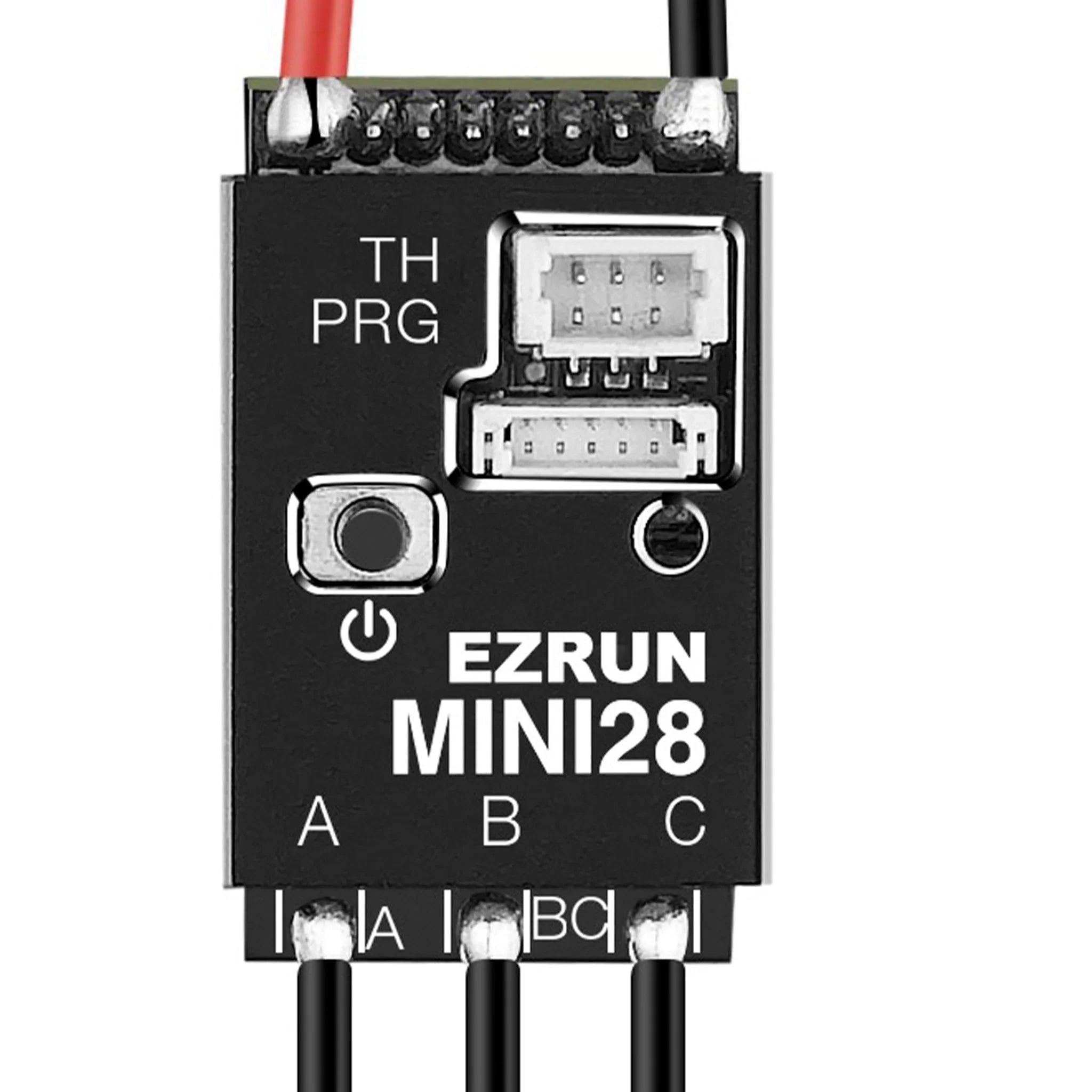

Purpose-Built for 1/28th Scale Racing The Mini28 ESC combines advanced software and hardware specifically engineered for 1/28th scale competitive racing. With newly developed programmable parameters optimized for micro-scale performance, this ESC delivers championship-level control in the smallest package.

Compact & Lightweight Design Measuring just 22mm × 14mm and weighing only 5g, the Mini28 ESC is exceptionally compact. Its low-profile design facilitates easy soldering while minimizing unnecessary modifications—a critical advantage in 1/28th scale racing where every gram matters.

High Performance with Efficient Cooling The full-alloy heat sink provides exceptional thermal management, keeping operating temperatures in the optimal range even during aggressive driving. Peak output current reaches 30A, delivering impressive power for its size.

Dual Operating Modes The ESC offers two competition-ready modes:

• Zero-Timing ("Blinky") Mode – For spec racing classes requiring stock timing
• Modified Mode – Allows adjustable turbo timing for maximum performance in open classes

Championship-Proven Programming Featuring 26 adjustable parameters including PWM frequency, brake frequency, throttle curve, boost, turbo, and more, the Mini28 inherits its software architecture from Hobbywing's World Championship-winning XR10 Pro series. This extensive programmability enables precise tuning to match your driving style and track conditions. Warning: Incorrect settings may damage your motor and ESC. Always consult the manual before making changes.

Integrated High-Voltage BEC The built-in switching BEC delivers up to 8A peak current with selectable 6V or 7.4V output, providing ample power for modern high-torque digital servos.

Wireless Programming via Bluetooth Connect seamlessly with Hobbywing's OTA Bluetooth module and smartphone app for convenient parameter adjustment and firmware updates—no programming card required.

Technical Specifications:

• Application: 1/28th and 1/26th scale vehicles
• Continuous/Peak Current: 30A / 80A
• Motor Compatibility: Sensored and sensorless brushless motors up to 1626 size
• Battery Support: 2S LiPo
• BEC Output: 6V/7.4V adjustable, 3.5A peak (switch-mode)
• Dimensions: 22.7 × 14.2 × 11.8mm
• Weight: 5g (without wires)
• Programming: Via throttle cable port or OTA Bluetooth module

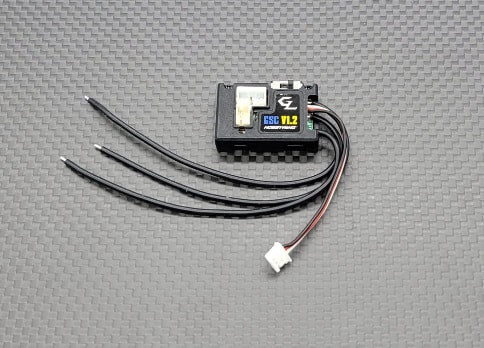

GL-GT-S-036 Gl Racing ESC

GL002-P

XP-ESC-R66

GLR-001-NEL

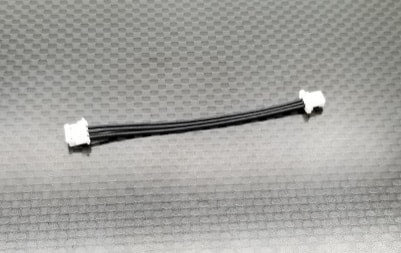

GL-SD-ESC-020T-WC

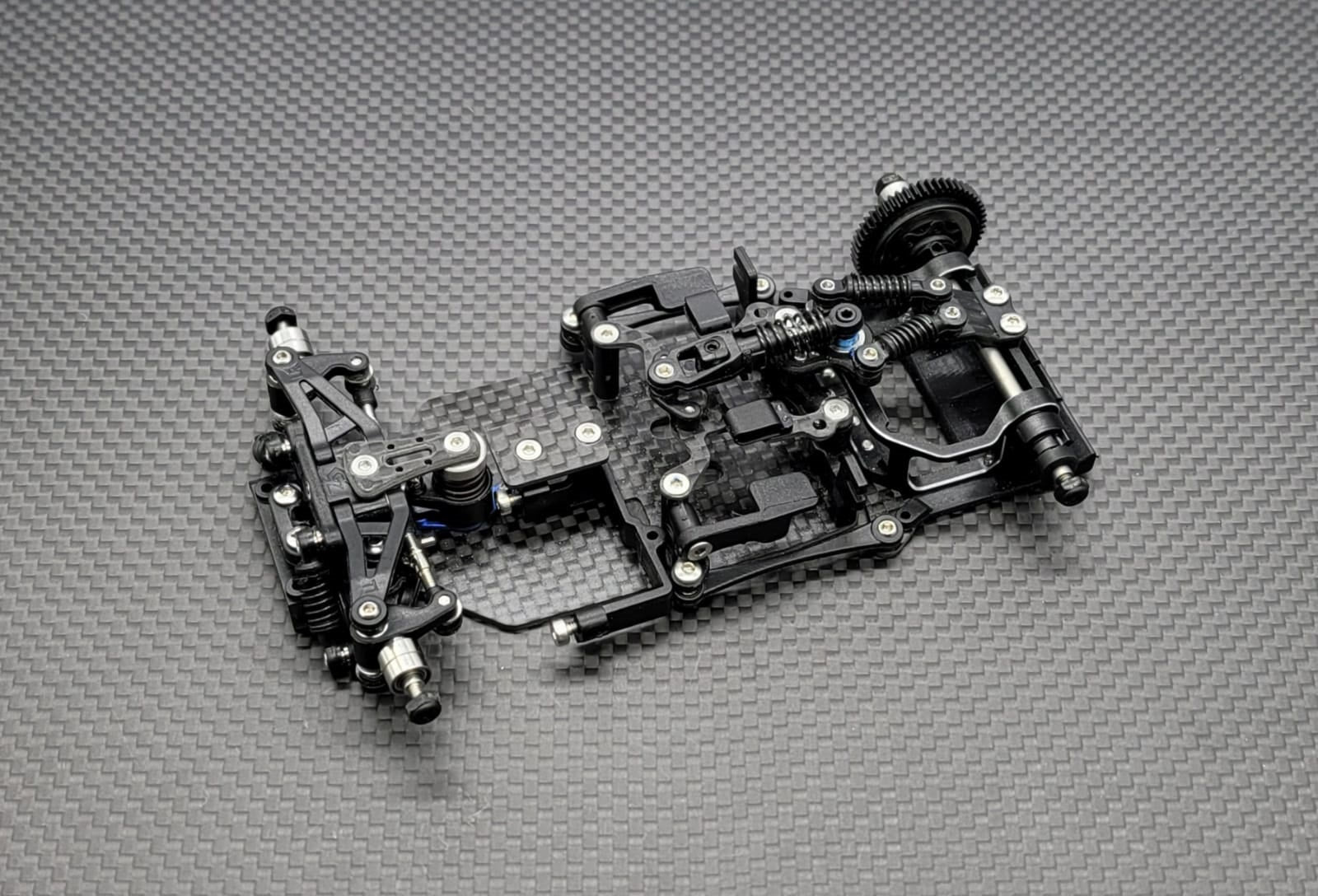

GL-GT-001-NEL

Details:

This kit version includes:

• GLR-GT Chassis

Items you will need to run:

• Transmitter

• Electronic Speed Controller

• Servo

• Receiver

• 15mm brushless Motor (e.g. GL and PN motors)

• 2S LiPo battery (47x11x20mm JST-PH plug)

• LiPo charger

• Mini-Z RWD style Wheels and Tires

• 98mm Mini-Z body shell

• Assembly tools

GL-BT-ESC-060-GTR

GL-BT-ESC-060-GTR (without Built-in Bluetooth) Brushless Sensored Speed Control for 1/28 mini car

Change to 32-bit MCU with ultra-smooth, faster response with precise throttle,brake and reverses control.

. Support ~2.5A BEC ampere drawn which is raised up by ~70%.

. Support ~30A instant ampere drawn by the motor which is raised up by ~80%.

. Bluetooth Module for advanced programming and firmware update through the Mobile APPS.

. APPS will be available on both IOS and Android.

. Data Analysis through Mobile APPS(Current Input & Output Throttle, Temperature, RPM, Adv. Timing, Voltage and min. voltage, Max Temperature, RPM & Adv. Timing).

Software:

. It is a new developed software with more advanced item functions added

. Each item have small step to fine tune.

Specs:

Battery Input Voltage: 2S lipo

BEC: 6V/2.5A

1/28 motor Limit: 9000kv or below

Max Ampere draw: ~30A per phase

Size: ~23.8x14.0x8.7mm(not include the plug)

Weight: ~5.6g(without any wire installed)

GLA-S023

Features:

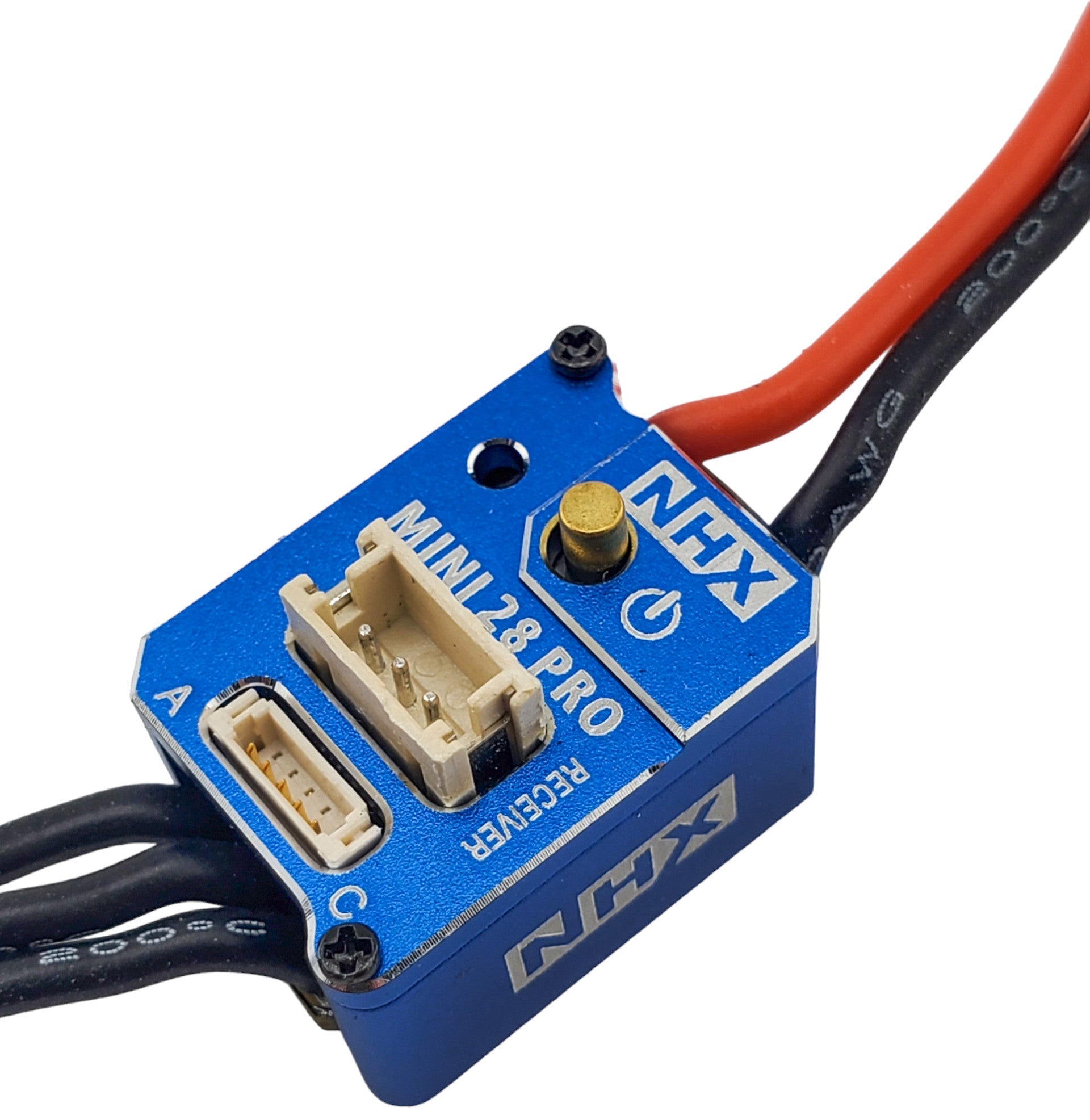

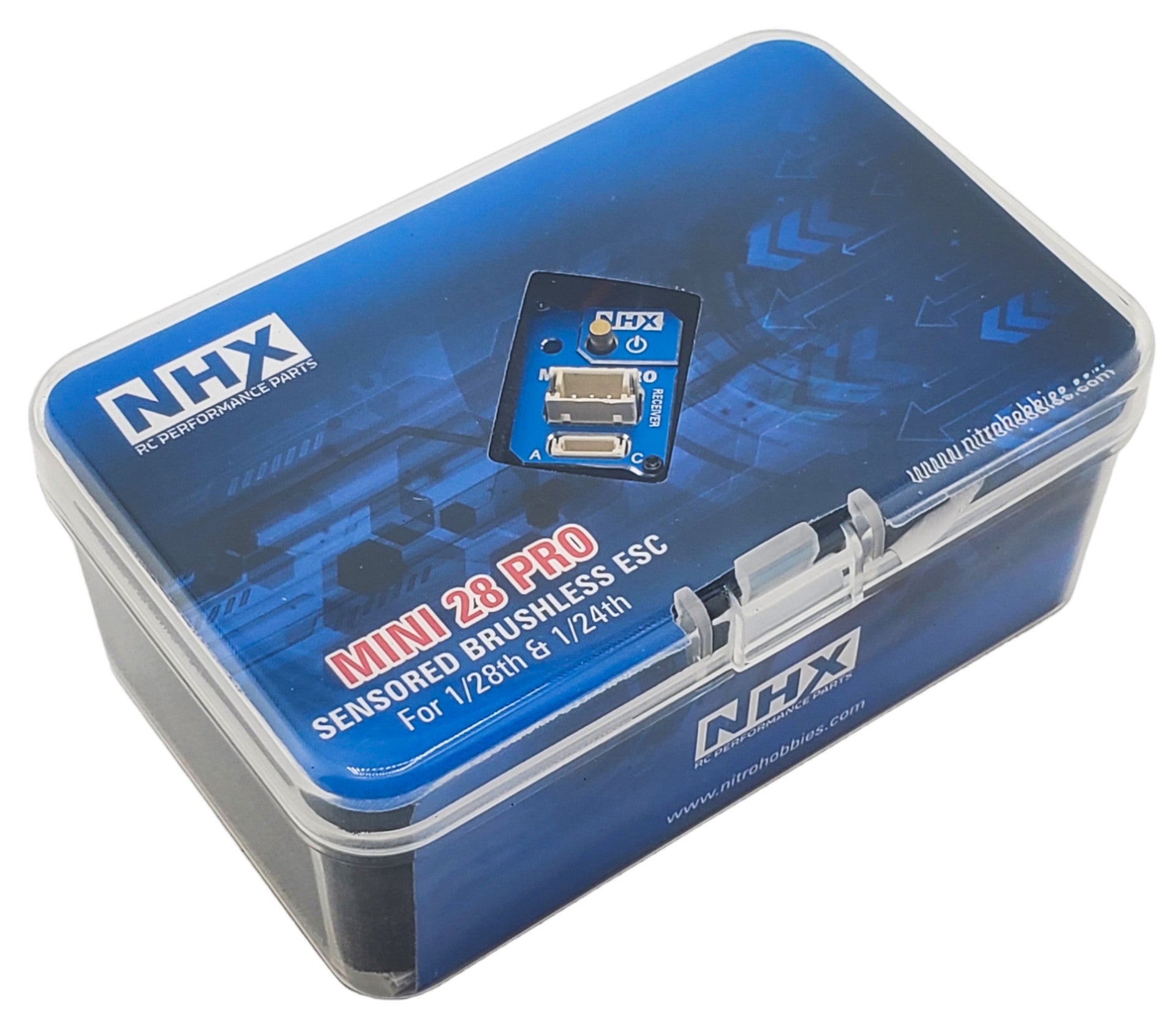

Introducing the NHX RC MINI 28 PRO Sensored Brushless ESC, the ultimate choice for 1:28/1:24 Mini Drift and Touring Car Racing. This ESC has a CNC aluminum housing that makes it super small and lightweight, without compromising on performance. It can support up to 30A of continuous current, giving you powerful output. You can also customize the ESC settings to suit your driving style and preferences. You can adjust the PWM drive frequency, Brake frequency, Boost Turbo and choose between two driving modes: Zero timing(Blinky) & Modified mode. This ESC is designed for competitive racing and will give you an edge over your opponents.

Specifications:
Input Voltage: 2S LiPo(6-8.4V)
Peak Current: 80A
Continuous Current: 30A
BEC Output: 6V/7.4V @Maximum 3.5A
Size: 21×13.8x11mm
Programming Method: LED Program Card Support
Weight: 7.0g(included wires)
Motor Limited: MINI Sensored Brushless Motor
Applicable Models: 1/28th & 1/24th
Supported Motor Types:1525/2030 Sensored motor
