PRODUCT INFORMATION:

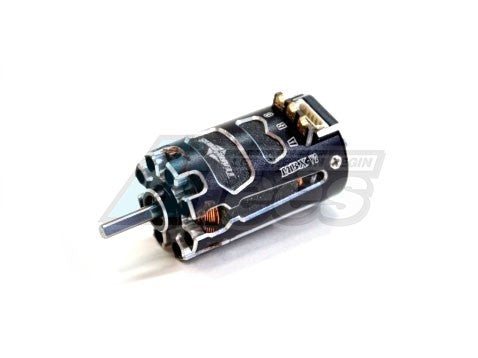

• This is MBX 7000KV V3 Brushless Sensored Motor For 1/27 Mini-Z.

  New features based on MBX V2 motor:

  • All outlook appearance and dimension are the same, the stator wiring and rotor dimension are updated to achieve smoother acceleration, especially for drift cars.




  Specification:

  • Sensor type
  • Motor Dimension (Diameter x Length): 15mm x 25.1mm (size is ~15% smaller than the MBX V1 motor)
  • Shaft Diameter: 2mm
  • Weight: ~14~15g (vary in different KV motor)
  • Recommended RC Model Car: 1/27 or 1/24 miniz car
• Package total weight: 30.00 grams (incl. packaging)
• Factory description: Team Powers MBX V3 7000KV sensored Brushless Motor (For 1/27th Mini-Z)

OMG-MT-AURORA-S2

Sensored brushless top motor for 1/27 and 1/28 Mini-Z RC Car

Suitable for rc RWD,FWD,etc vehicles.

Max Amps:8A

Max Voltage (V):<8.4

Resistance(Ω):0.74

No-load Current(A):0.25

Continuous Power(W):80

Poles:2

Max RPM:60000

Length of extend Shaft:10mm

Diameter Length(mm):Φ15X25mm

Shaft Diameter(mm):Φ2

Weight:17g

OMG-MT-AURORA-3500KV-4500KV-5500KV

Color: Black/Red/Blue

Max Amps: 8A

Max voltage (V):<8.4

Resistance (Ω):0.74 No-load current (A):0.25

Continuous power (W):80

Posts: 2 Max RPM: 60000

Extension shaft length: 10mm

Diameter Length (mm):Φ 15X25mm

Shaft diameter (mm):Φ2/Weight: 17g

Replacement pod plate for your G3 D kit.  Has key holes for new pod, but will work with older versions.

RX28 Gen 3 Motor Mount

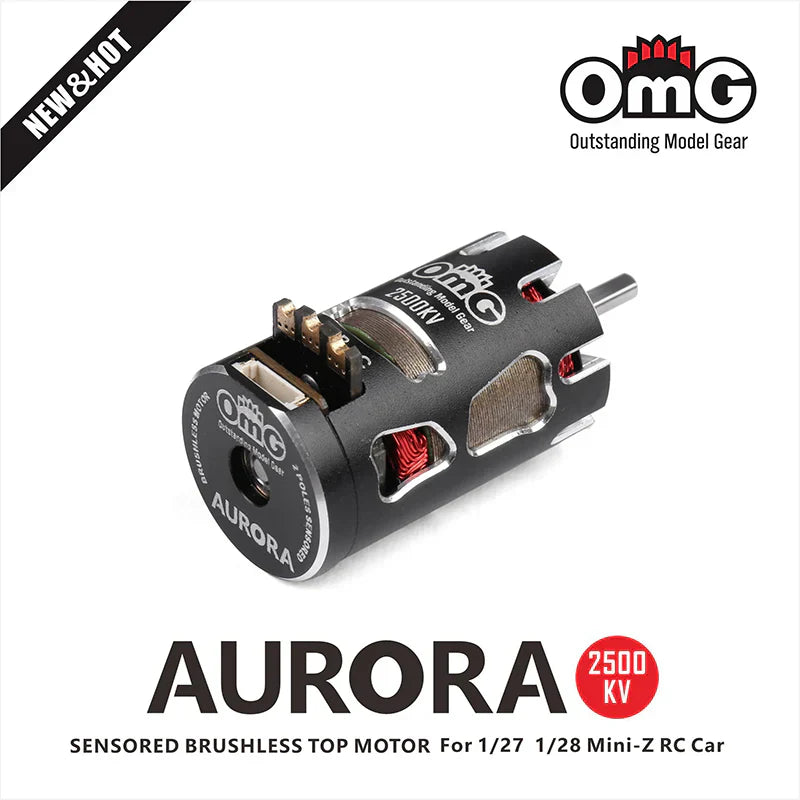

OMG MT-AURORA-S2 Sensored Brushless Top Motor (1/27–1/28 Mini-Z RC Car)

Take your Mini-Z performance to the next level with the OMG MT-AURORA-S2 — a precision-engineered, sensored brushless motor designed for 1/27 and 1/28 scale RC cars. Perfect for RWD, FWD, and AWD setups, this motor delivers smooth throttle response and outstanding efficiency for serious racers.

⚙️ Specifications

• Motor Type: Sensored Brushless

• Scale Compatibility: 1/27 & 1/28 Mini-Z RC Cars

• Suitable for: RWD, FWD, AWD vehicles

• Poles: 2

• Weight: 17g

⚡ Performance

• kV Options: 2500KV

• Max Amps: 8A

• Max Voltage: < 8.4V

• Resistance: 0.74Ω

• No-load Current: 0.25A

• Continuous Power: 80W

• Max RPM: 60,000

📏 Dimensions

• Motor Size: Φ15 × 25mm

• Shaft Diameter: 2mm

• Extended Shaft Length: 10mm

🎨 Color Options

• Black (BK)

• Red (RD)

• Purple/Violet (VT)

Upgrade your Mini-Z with the OMG MT-AURORA-S2 — engineered for speed, control, and performance.

For replacement Spindle Shaft with Mini-Z Wheel Adapter for Tire Truer 800500 and 800501

Sensor cable for AWD cars with ESC installed next to motor.

TPR-BLM-5500KV-MBX-V4

164435

NEW V4 Version

Motor Can

- the all new motor can has bigger and more ventilation holes allowing better heat dispersion thus providing better run time

- front section has evenly spaced mounting screws holes that is compatible and fits for all after market motor holder and chassis

End Cap

- newly designed end cap now comes with side locking screws that firmly secures the end cap and PCB.

Stator

- high temp wires used for longevity

- proprietary wiring producing better speed, torque and smoothness

Changeable armature

New design air vent gets more cooling

High-Temperature wire

15mm diameter motor can, same as normal brushed 130 motors. Fits in all Kyosho, PN, and aftermarket motor mounts.

Fits in all Mini-Z chassis AWD, F1, MR02, MR03, MR04

Much more torque and acceleration than other VE motors.

No loading RPM 22000 on 4.8V, amp draw only 0.28A

Four mounting holes to allow different angles of motor terminals.

Eight venting holes prevent heat buildup.

Can and end bell ball bearing from Japan.

Recommend gear ratio 3.95 to 5.00

Connection M1 to Orange Wire, M2 to Yellow Wire, M3 to Blue Wire

Recommend wire #700122

Replacement endbell screws #183002

Features:
-CNC Brass Pinion 12T 3mm hole for easy mount outrunner motor 2204.
-CNC Hardeness Steel Gear Spur Gear 32 Tooth 0.5 Mod Pinion Gear.
-Plastic motor mount support 2204 outrunner motor, 2030, 2040, 2345 inrunner motor…

Package Includes:
1x Plastic Motor Mount.
1x Hardeness Steel Spur Gear.
1x Brass Pinion.
1x Hardwares.

TPR-BLM-4500KV-MBX-V4

Description:

Brushless sensor-less motor for Mini-z and any other 1/28 sized micro racers! Features large air ventilation holes to keep with keeping temperatures cool! Four different set of mounting holes allows for you to shift the wiring to allow for ease of mounting. D shaped cut motor shaft for use with both plastic and metallic pinion gears with set screws!

Feature:

• For: 1/24 1/28 Scale Racers
• Poles: 2
• Material: Aluminum
• Color: Black / Red
• Dimensions: 36mm X 15mm (w/shaft) 27mm X 15mm (w/o shaft)
• Weight: 17g

Carbon Fiber Motor Pod Plate

Sensor cable optimized in length for a 2wd 1/28 car with Hobbywing Mini-28 ESC

Xbility Carbon Motor Mount Bar For XBOne XB1-049

Optional CF Pod Plate for you SE Gen3 Kit.  This CF piece will shed about 3g of weight and it will increase rotation of your car.  Recommended for stock classes.

Sensor cable optimized in length for a 2wd 1/28 car with MC1 ESC
