AtomicRC's Optional/Replacement/ MOTOR. SENSORED Brushless 6500KV Zenon

• Model: MRZSF-11
• Manufactured by: Atomic

• Model: MRZSF-14
• Manufactured by: Atomic

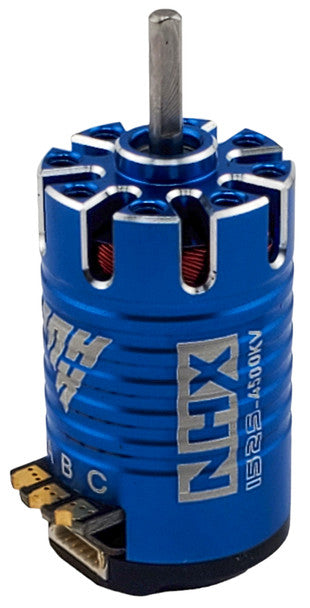

1525 2-Pole 4500KV Sensored Brushless Motor

High-Efficiency Power in a Compact Design – Perfect for 1/24 and 1/28 Scale RC Vehicles

The all-new 1525 2-Pole Sensored Brushless Motor delivers premium performance in a micro-sized package. Designed for competitive RC applications, this motor provides up to 80W of maximum power with an impressive 92% output efficiency. Whether you prefer Sensored or Sensorless startup, this motor adapts to your driving style.

🔧 Key Features:

• Dual-Mode Startup: Supports both Sensored and Sensorless operation.
• High-Efficiency Performance:
  • Powerful 2-pole rotor with high-temp magnets (up to 200°C).
  • 0.2mm silicon steel stator achieves up to 94% energy conversion.
  • High slot rate design for increased power with reduced resistance.
• Premium Build Components:
  • NSK bearings from Japan for smooth high-speed performance.
  • Gold-plated thick PCB board ensures reliable ESC connection.
  • American MWS red wire for high-grade conductivity.
  • Sensor port compatible with standard sensor cables.
• Precision-Balanced Rotor: Balanced with a German Schenker machine for ultra-smooth operation.
• Turbo Timing Capable: Reach speeds of up to 60,000 RPM when turbo timing is enabled.
• Durable Aluminum Alloy Housing: Lightweight and highly stable under load.

📐 Specifications:

Motor Type:	Brushless, Sensored
KV Rating:	4500KV
Turns:	29.5T
Max Power:	80 Watts
Max RPM:	60,000 RPM (with turbo timing)
Rotor Poles:	2
Voltage Range:	Up to 8.4V
Max Current:	8A
No-load Current (IO):	0.25A
Internal Resistance:	0.652 mΩ
Sensor Timing:	Sensor 0°
Rotor Size:	ø6.0 x 14.5mm
Dimensions:	15mm (D) x 25mm (L)
Shaft Diameter:	2mm
Weight:	17g

📦 Package Includes:

• 1 × 4500KV Mini 1525 2-Pole Sensored Brushless Motor
• 1 × Sensor/Connecting Cable

Ready to upgrade your 1/24 or 1/28 scale RC vehicle? The 1525 Sensored Brushless Motor delivers elite performance in a compact form factor — ideal for racers and hobbyists alike.

GL-RIDER-NEL

The feature of the rider are:

1.Installation of front and rear lights are possible to make it more “cool”

2.Come with a white shell which you can have your own paint to make it fits your own style

3.Chassis is made of Strong ABS material

4.Rear ball differential

5.High quality ball bearings

6.Servo saver

7.Oil damping central shock

8.Ready to run tires and rims

9.GL stickers set

10.Lipo battery powered (battery to be sold separately)

Item you will need to run:

.Transmitter

.Receiver

.Electronic Speed Controller

.Servo(GL003-DMG)

.15mm brushless Motor

.2S Lipo Battery

.Lipo Charger

ABX-003

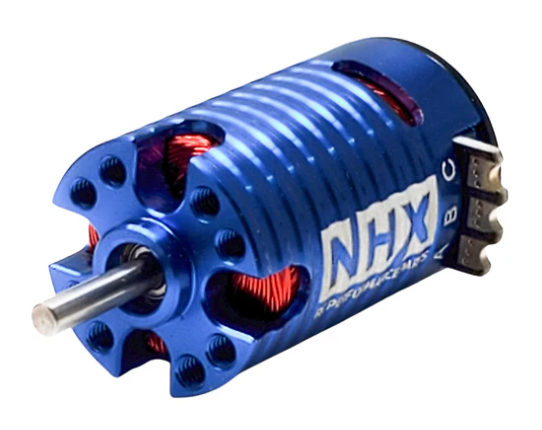

Brushless sensor-less motor for Mini-z and any other 1/28 sized micro racers! Features large air ventilation holes to keep with keeping temperatures cool! Four different set of mounting holes allows for you to shift the wiring to allow for ease of mounting. D shaped cut motor shaft for use with both plastic and metallic pinion gears with set screws!

For: Mini-Z and other 1/28 Scale Racers
Material: Aluminum
Color: Black/Blue
KV: 2500
Voltage: 8.4v Max
Dimensions : 36mm X 15mm (w/shaft)  , 27mm X 15mm (w/o shaft)



Brushless sensor-less motor for Mini-z and any other 1/28 sized micro racers! Features large air ventilation holes to keep with keeping temperatures cool! Four different set of mounting holes allows for you to shift the wiring to allow for ease of mounting. D shaped cut motor shaft for use with both plastic and metallic pinion gears with set screws!

Feature:

For: Mini-Z and other 1/28 Scale Racers
Material: Aluminum
Color: Black/Blue
KV: 5500
Voltage: 8.4v Max
Dimensions : 36mm X 15mm (w/shaft)  , 27mm X 15mm (w/o shaft)


Include:

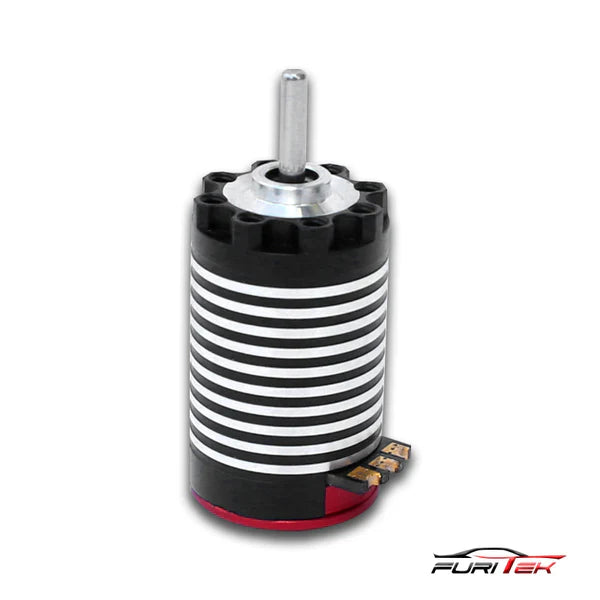

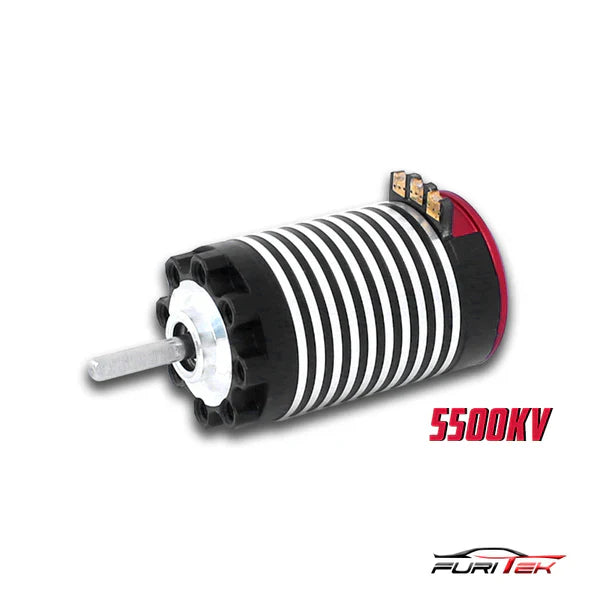

5500KV Mini 1410 2 Poles Sensorless Brushless Motor (1 pc)

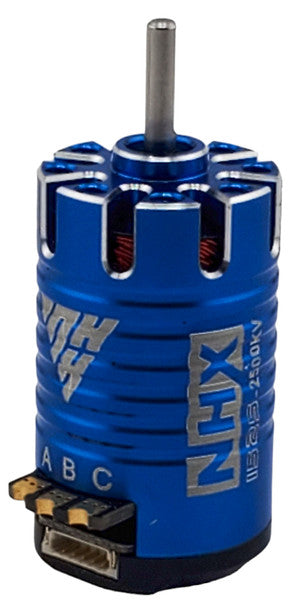

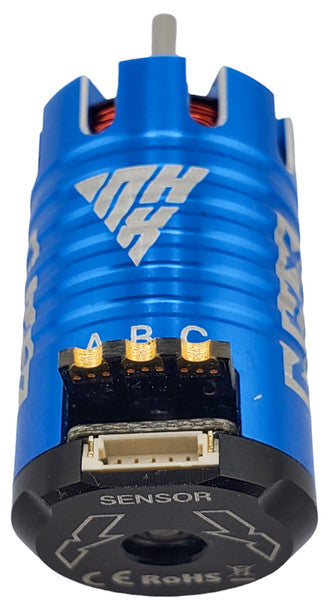

1525 2-Pole 2500KV Sensored Brushless Motor

High-Efficiency Power in a Compact Design – Perfect for 1/24 and 1/28 Scale RC Vehicles

The all-new 1525 2-Pole Sensored Brushless Motor delivers premium performance in a micro-sized package. Designed for competitive RC applications, this motor provides up to 80W of maximum power with an impressive 92% output efficiency. Whether you prefer Sensored or Sensorless startup, this motor adapts to your driving style.

🔧 Key Features:

• Dual-Mode Startup: Supports both Sensored and Sensorless operation.
• High-Efficiency Performance:
  • Powerful 2-pole rotor with high-temp magnets (up to 200°C).
  • 0.2mm silicon steel stator achieves up to 94% energy conversion.
  • High slot rate design for increased power with reduced resistance.
• Premium Build Components:
  • NSK bearings from Japan for smooth high-speed performance.
  • Gold-plated thick PCB board ensures reliable ESC connection.
  • American MWS red wire for high-grade conductivity.
  • Sensor port compatible with standard sensor cables.
• Precision-Balanced Rotor: Balanced with a German Schenker machine for ultra-smooth operation.
• Turbo Timing Capable: Reach speeds of up to 60,000 RPM when turbo timing is enabled.
• Durable Aluminum Alloy Housing: Lightweight and highly stable under load.

📐 Specifications:

Motor Type:	Brushless, Sensored
KV Rating:	2500KV
Turns:	29.5T
Max Power:	80 Watts
Max RPM:	60,000 RPM (with turbo timing)
Rotor Poles:	2
Voltage Range:	Up to 8.4V
Max Current:	8A
No-load Current (IO):	0.25A
Internal Resistance:	0.652 mΩ
Sensor Timing:	Sensor 0°
Rotor Size:	ø6.0 x 14.5mm
Dimensions:	15mm (D) x 25mm (L)
Shaft Diameter:	2mm
Weight:	17g

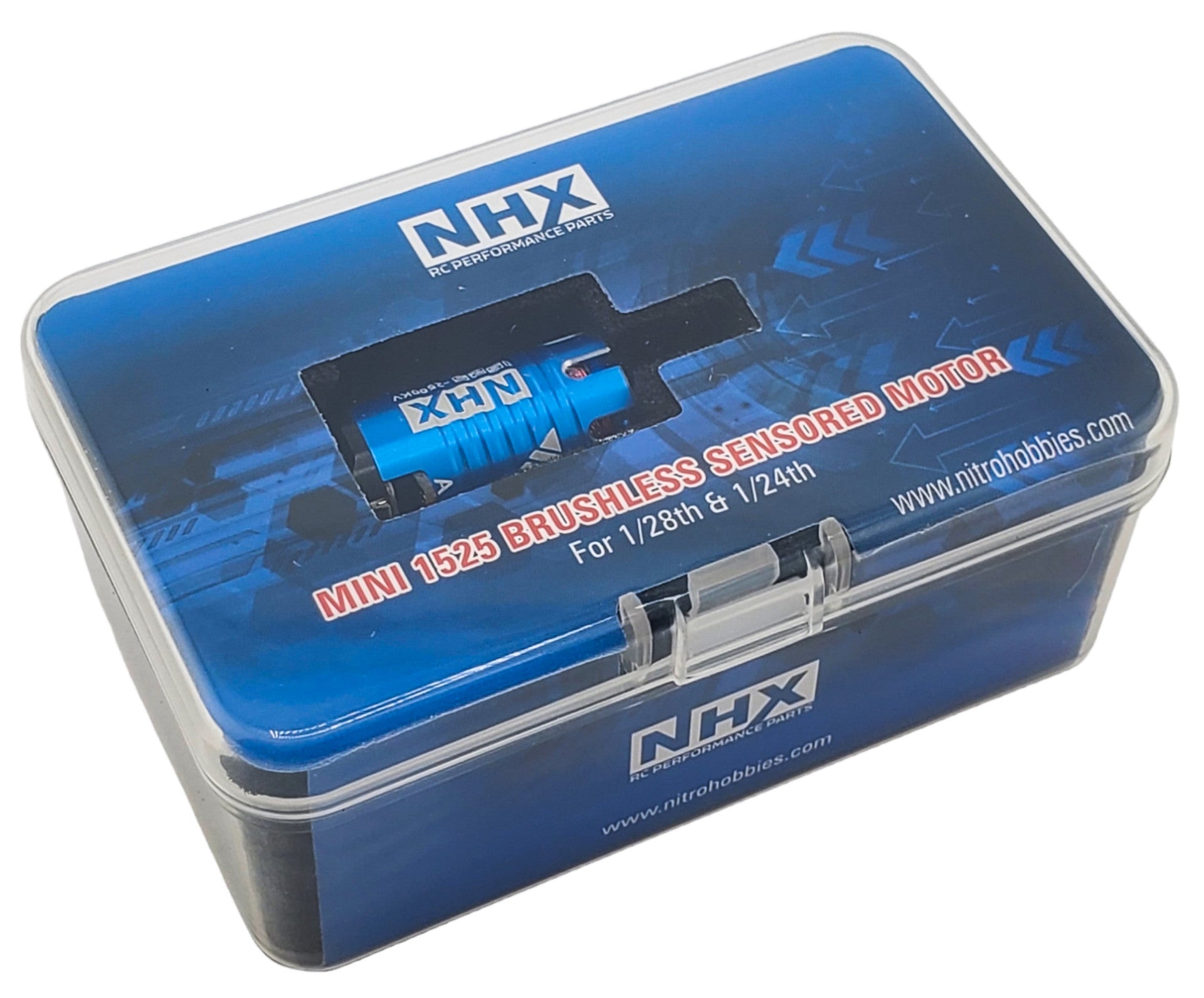

📦 Package Includes:

• 1 × 2500KV Mini 1525 2-Pole Sensored Brushless Motor
• 1 × Sensor/Connecting Cable

Ready to upgrade your 1/24 or 1/28 scale RC vehicle? The 1525 Sensored Brushless Motor delivers elite performance in a compact form factor — ideal for racers and hobbyists alike.

GL-LMP2-OP-010

NexxRacing introduces 2in1 Motor Mount.

NX298 Aluminum Motor Mount for Axial SCX24.

Features:

-Design to mount with the following motors Mofo 1209, Mofo 1211 and Brushless 1410 on market.

-Made with High-Quality CNC 7075 Aluminium.

-Lowest CG point design and light in weight.

Included :

-1 x CNC Alu Motor Mount

-2 x Button Hex Screw M2x10mm

-2 x Alu Washer 2x4x1mm

GL-GTR-OP-011

Features:
2 Pole strong magnetic rotor hi-torque motor design.
High purity and higher temperature copper windings, lower copper losses, maximises efficiency.
Super thin (0.2 mm) stator lamination - lower eddy losses - maximises efficiency.
Japanese NMB --- High RPM ABEC5  bearings.
Precision balanced rotor, smoothness for best reliability and maximum 60,000 RPM.
CNC machined 6061 T6 aluminium heat sink vein can design--- good heat dissipating.
Precision engineered for maximum energy conversion.
Special designed end cap  with side locking screws that firmly secures the end cap and PCB.
☆☆☆ Sensorless motor can be easily upgraded to sensored motor with optional parts in the future, no longer need to change the entire motor.
Suit for 1/24 1/28 1/32 RC MINI-Z mini car

• Model: BZ-010-A
• Shipping Weight: 5 grams
• Manufactured by: Atomic

Conversion of Gearbox Set and Motor Mount MANUAL

Features Gearbox Set Alu

Made of aluminium, sturdy and durable, wear resistant

CNC machined for high precision and strength

Easy to install and remove, fit to the car perfectly

Features Gear Set

The replace for the original gear set.

High quality steel.

Integral coupling.

Easy to install.

Features Spur Gear, 12T Pinion Gear:

Brass Pinion 12T 3mm hole for easy mount outrunner motor 2204

Aluminum CNC 32T 0.5 Mod Pinion Gear

Features CNC 2204 Motor Mount

Motor mounts for 2204 motors are CNC machined from aluminium billet making them very strong and lightweight. They are designed to fit Axial SCX24.

The motor mounts were designed with a mixture of both aerospace aluminum material and beautiful carbon fiber material. This will allow for proper protection for SCX24 gear set.

The aluminum motor mounts help to increase strength for holding the motors properly and also work great as a heat sink for cooler running motors.

Easy to Install.

All hardwares included.

Package included

1x51T / 19T Gear Set

1x Gearbox Set Alu

1x CNC Motor Mount

1x Spur Gear 32T

1x 12T Pinion Gear

1x Carbon Plate

2 x Bearing 4x8x3

2 x Bearing 2x5x2.5

3 x Pan Head Phillip Screw M1.4×6

3 x Pan Head Phillip Screw M1.4×8

8 x Pan Head Phillip Screw M1.4×10

1x Set Screw M3x2mm

2x Button Socket Head Bolts M2x6mm

2x Hexagon Socket Head Cap Screw M3x14mm

2x Flat Washer M3

GMM-002-SD6000KV

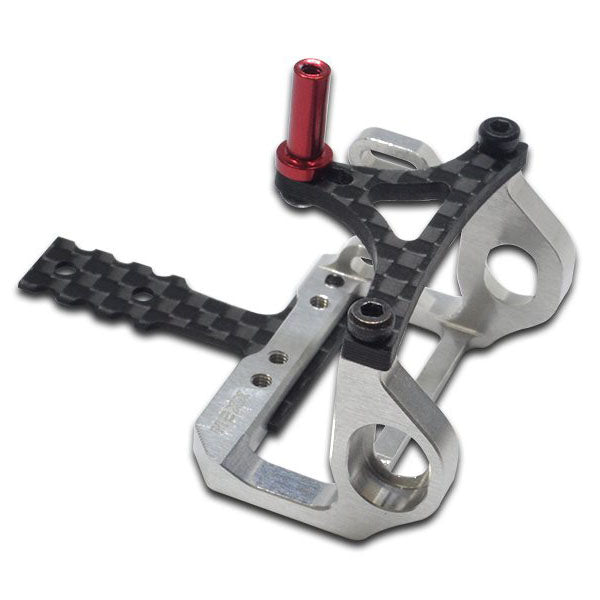

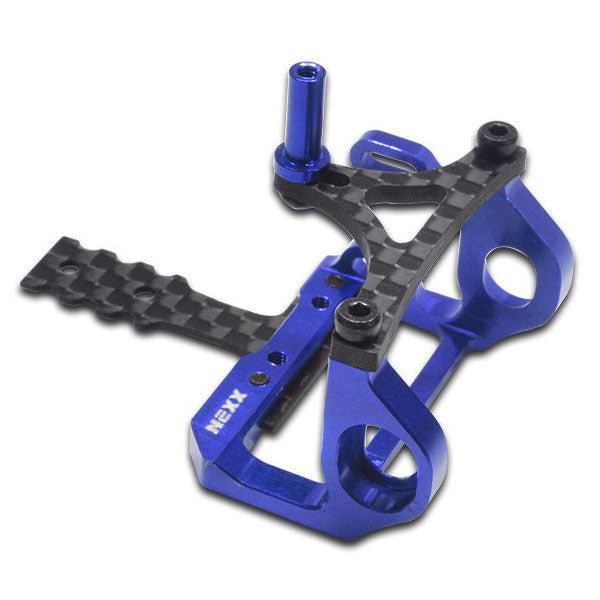

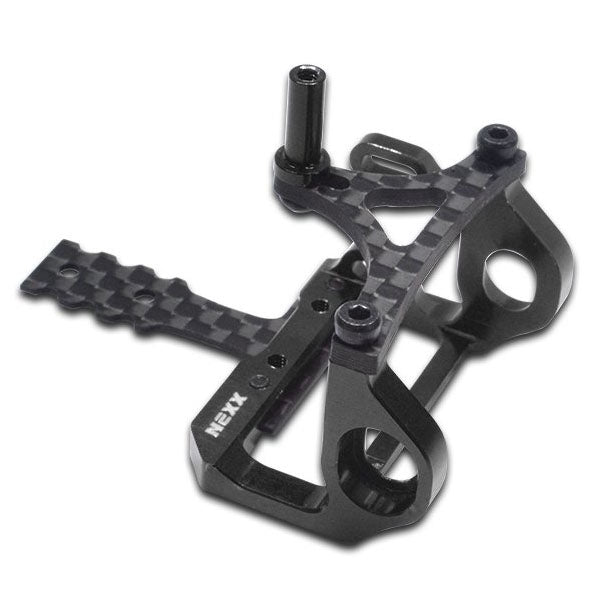

Nexx Racing's Optional/Replacement (MM) Mid Motor 90-94mm CNC'd, 7075 SWISS aluminum motor mount, has long been waited for, for the venerable MR03. Its here! Available in 5 anodized colors, comes assembled and is trick! This awesome CNC'd 7075 Swiss Aluminum MM, that is right, MID MOTOR mount for the 90-94mm short WB chassis is HERE! This changes the whole characteristics of the Short, Narrow classics put on the shelves, long ago! With available Narrow V-Line suspension sets, the incredible NX-126 ceramic ball differentials, Nexxracing's all in 1, Multi length, carbon fiber damper plate, carbon fiber damper disk and tuning spring set along with the Nexxracing's top dual spring damper shock... you will be thrilled at the speed, quickness and handling as well as the trick look of a competition chassis! And for more handling...check out the NEW GEKKO Racing tires and DXR super light, carbon fiber re-enforced, machined Race wheels, available at additional cost.

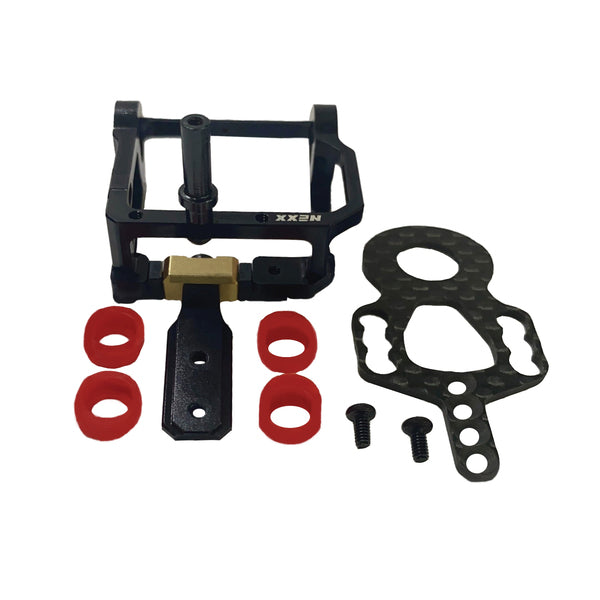

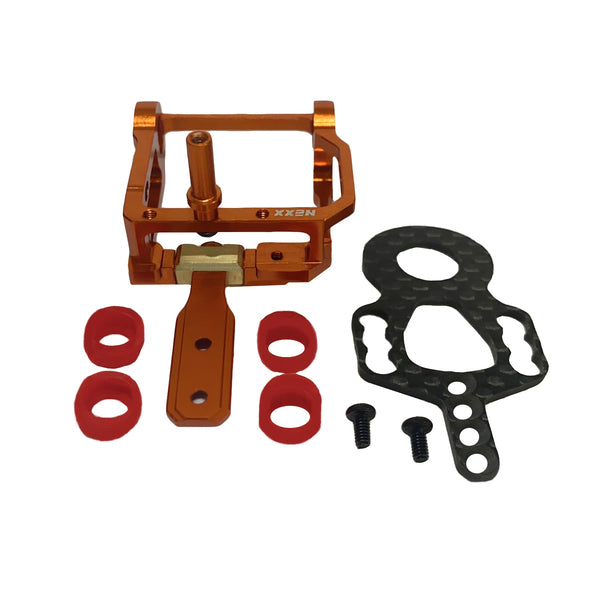

Nexx Racing's Optional/Replacement, "Gimbled" motor mount. Not just any other "Gimbled" motor mount. The innovative "ULLcG" (ultra low, light, Center of Gravity, Ball Bearing, gimbled, Swiss 7075 aluminum motor mount provides the latest technology in 1/28 scale racing. engineered to work with the NEW NX-283 TRI-DAMPER, the NX-247 comes pre-drilled and tapped for the Tri-Damper. Available in 5 anodized colors; RED, Silver, Black, Orange and Black. Quick and easy installation and is highly "tunable" using silicon grease/adjustable spring pressure and can be used with any combination of damper disk and springs. Great looks, style and performance from the innovative engineers at Nexx Racing who love winning!
