600500Y

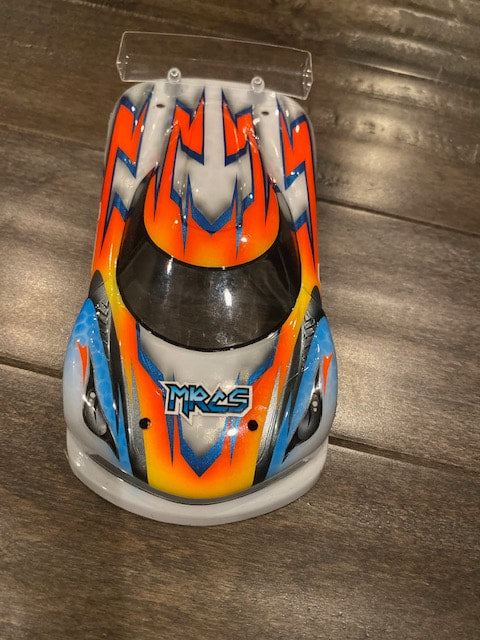

PNWC 2024 Paris allowed body for 2WD Stock and GTLM Super Stock class

Description

Configurable for 98mm wheelbase.

The body comes unpainted. painting is not necessary as it was made of white color material with a glossy finish

Features Reversible Side Body Clip which allows lowering body height by 1mm when installed in the reversed order.

Includes

Lexan Roof

Lexan Spoiler

Front & Side Body Clips

Headlight Taillight Lens in Clear

Headlight Taillight Lens in Red

Screws

Requirement

Kyosho Mini-Z MR-02, MR-03, PN 2.5W

GL Racing GLA, GLR

Atomic AMZ, BZ

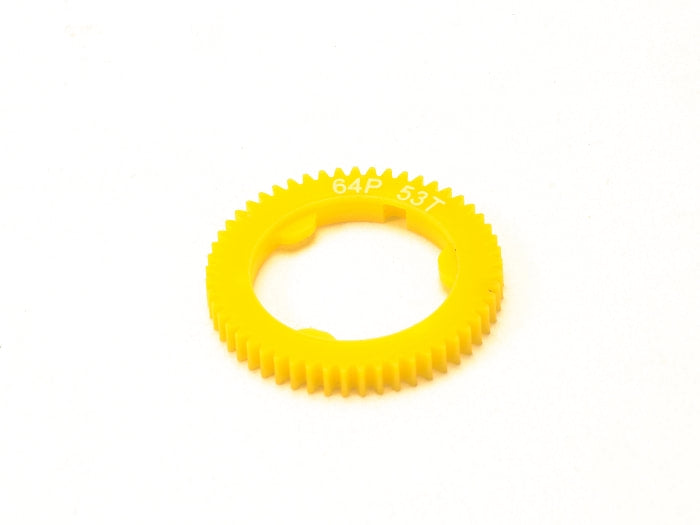

OFFICIAL PNWC Spur Gear for 2WD Stock class and Super Stock class

For replacement PN Racing Mini-Z Precision Gear Differential Spur Gear

Changing Spur Gear Ratio

1. Loosen Tension Nut to separate side gears.

2. Allow spider gear pins to recess into carrier. Depress with screw driver if necessary as shown by arrows.

3. Remove spur gear.

4. Installation is reverse of removal

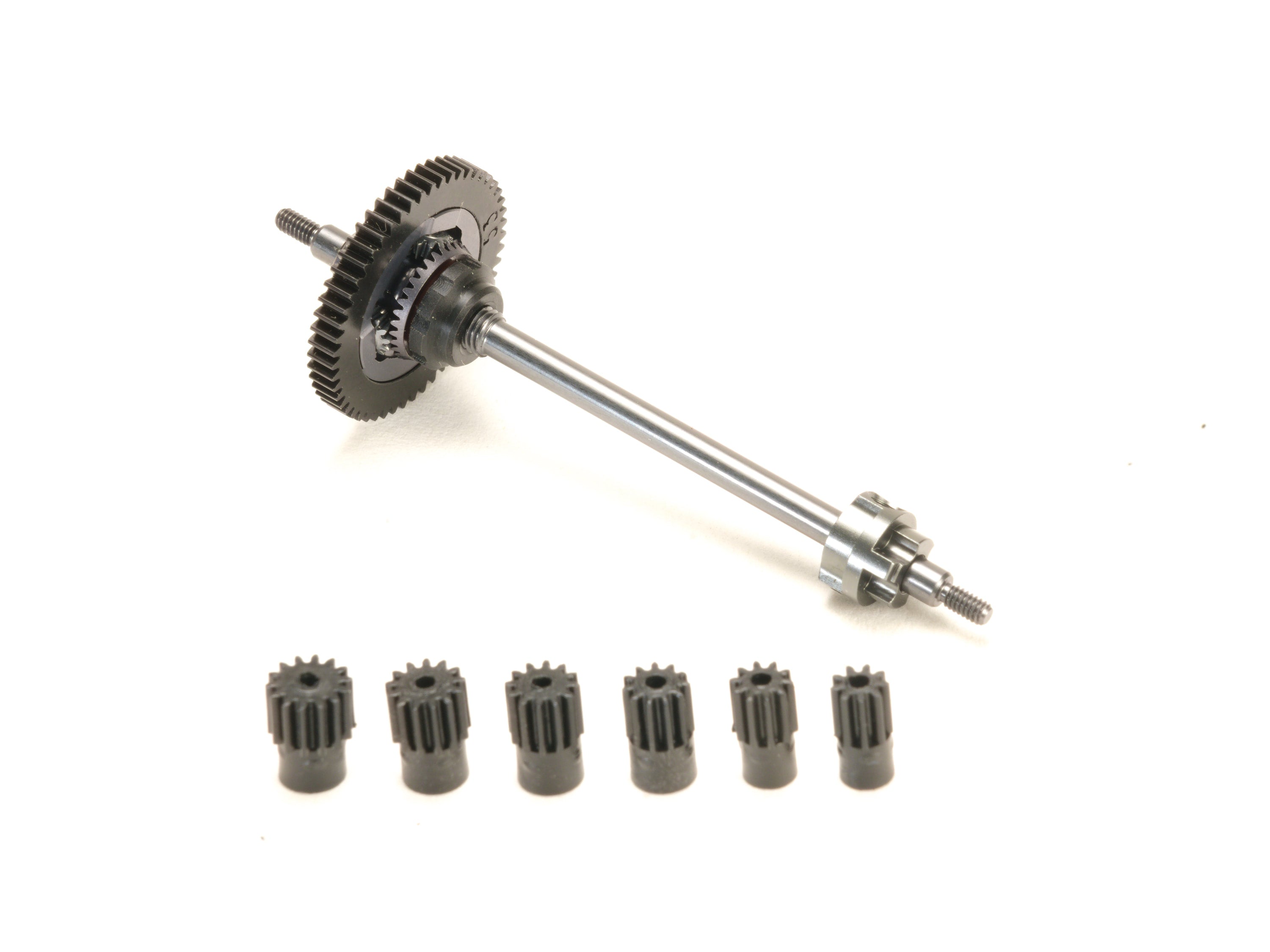

PN Racing Mini-Z Precision Gear Differential

Parts Number MR2055M is M0.5 43T

Parts Number MR2055P is 64P 53T

•Light weight. Minimal rotational inertia for fast acceleration.

•Axle has been revised to 3mm (both side uses same size bearing/bushing now)

•Fast gear ratio changes. No dis-assembly of differential necessary for spur gear change.

•Adjustable side gear tension for tight or loose differential action.

Smooth quiet operation. No gear noise and vibration associated with stock differential

Changing Spur Gear Ratio

1. Loosen Tension Nut to separate side gears.

2. Allow spider gear pins to recess into carrier. Depress with screw driver if necessary as shown by arrows.

3. Remove spur gear.

4. Installation is reverse of removal

KSM238

High-precision machine cut Black Delrin 64P

High-precision machine cut Delrin 64P

KSK4835

Orange Bag of KSK Compound

Better grip and long life

Laser marker parts number inside

KSM542

Brand New Low Profile Tires

PN Racing KS & KS-M compounds are our most popular race proven tire compounds

PN Racing KS Compound: its known to offer more grip as the tire heat up and long duration.

PN Racing KS-M Compound: its known to offer quick warm up and good grip from beginning of the race, also suitable for tracks in cold climate.

After months of R&D, we can finally release our brand new low profile high performance tires.

Our new low profile tires are 1.6mm thick, when its installed on the 20mm rims, the diameter will be 23.2mm.

For stock class you don't have to true these tires, it will be broken in after running on RCP track for one battery pack.

For more advanced classes, only the surface (0.1-0.2mm) needs to be trued.

8.5mm tires

KS Compound

KS1130 Slick Front Tire (8.5mm) SUPER SOFT

KS1134 Slick Front Tire (8.5mm) SOFT

KS1138 Slick Front Tire (8.5mm) MEDIUM

KS1142 Slick Front Tire (8.5mm) Hard

KS-M Compound

KSM530 Slick Front Tire (8.5mm) SUPER SOFT

KSM534 Slick Front Tire (8.5mm) SOFT

KSM538 Slick Front Tire (8.5mm) MEDIUM

KSM542 Slick Front Tire (8.5mm) Hard

11mm tires

(If you use 14mm rear tire, this is perfect front tire to use with 11mm wheels)

KS Compound

KS2130 Slick Tire (11mm) SUPER SOFT

KS2134 Slick Tire (11mm) SOFT

KS2138 Slick Tire (11mm) MEDIUM

KS2142 Slick Tire (11mm) Hard

KS-M Compound

KSM630 Slick Tire (11mm) SUPER SOFT

KSM634 Slick Tire (11mm) SOFT

KSM638 Slick Tire (11mm) MEDIUM

KSM642 Slick Tire (11mm) Hard

KSM134

MR2055PC

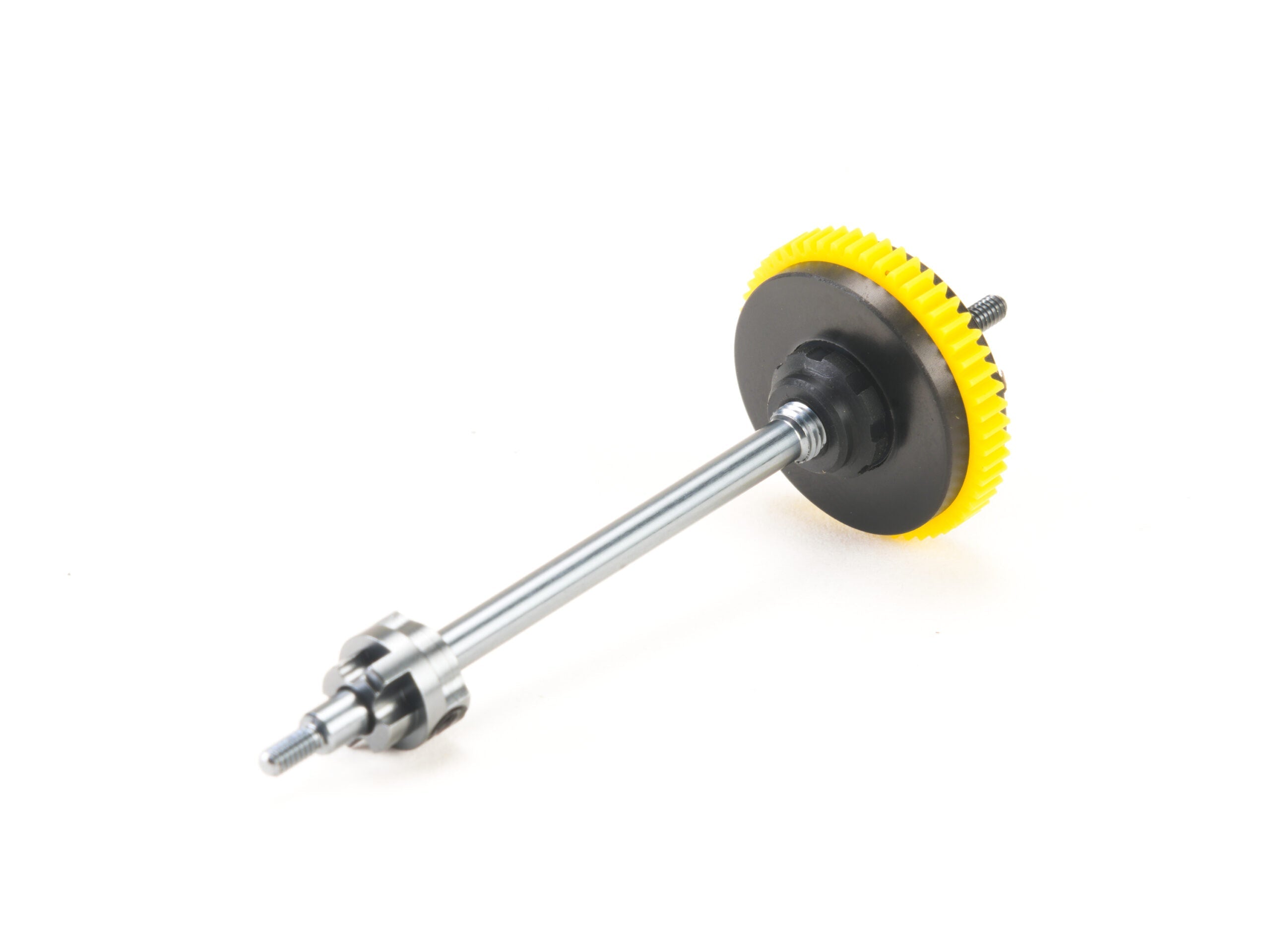

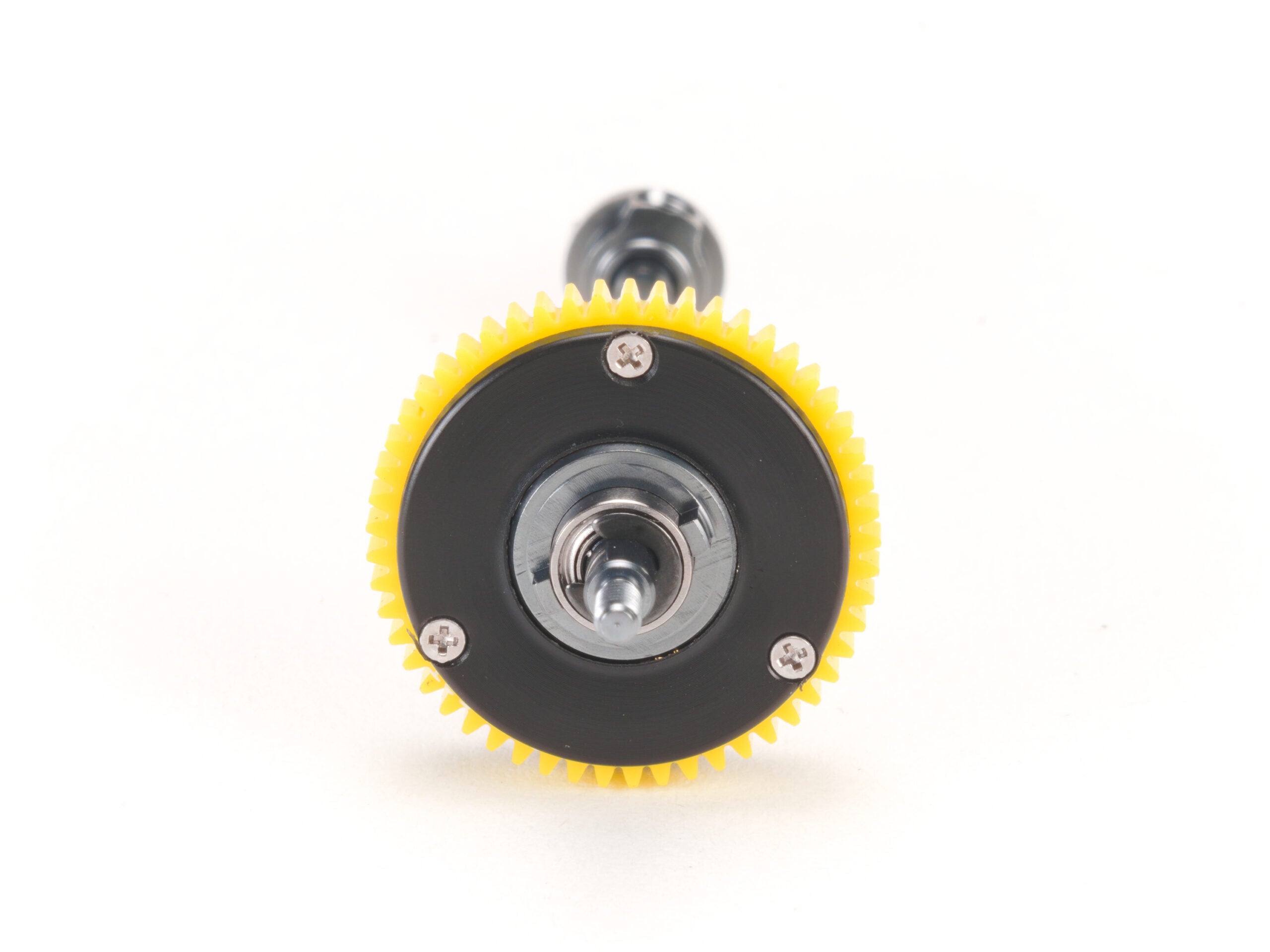

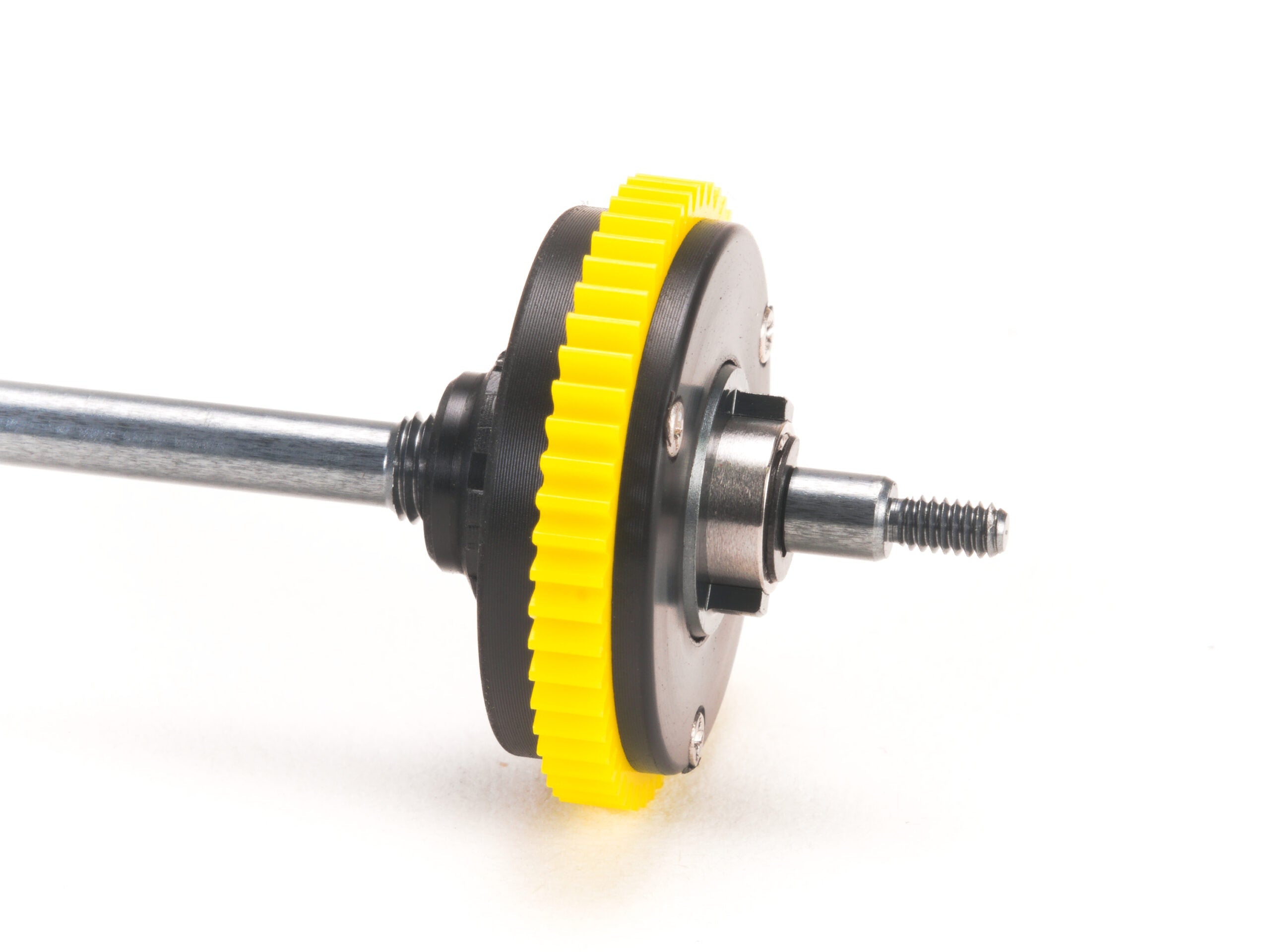

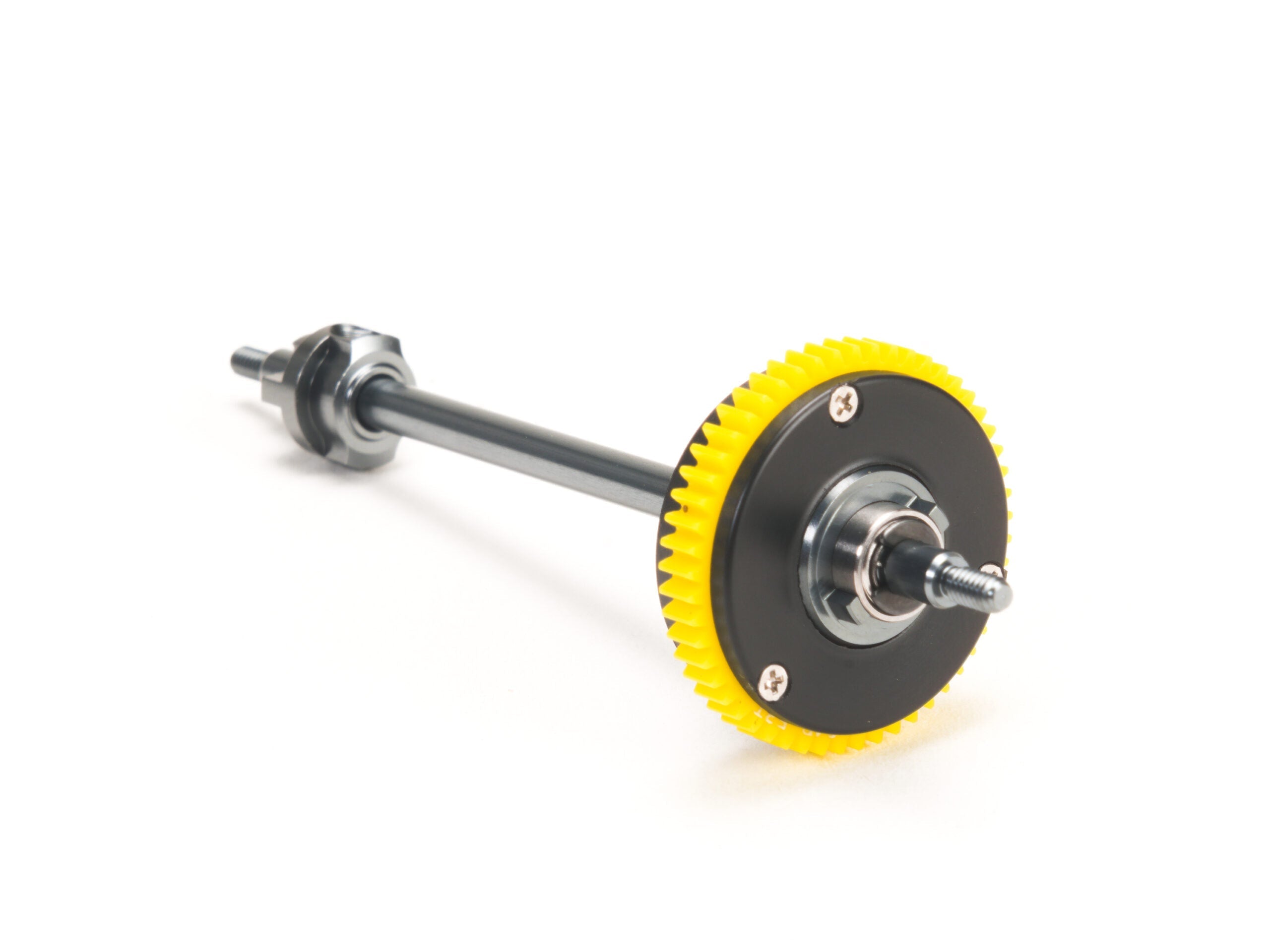

PN Racing Mini-Z 2WD V3 Precision Enclosed Gear Differential 64P 53T

V3 version comes with 600126T3x6x2.5mm Thrust Ball Bearing

•Light weight. Minimal rotational inertia for fast acceleration.

• The axle has been revised to 3mm (both sides use the same size bearing/bushing now)

•Fast gear ratio changes. No disassembly of the differential is necessary for a spur gear change.

•Adjustable side gear tension for tight or loose differential action.

•Smooth quiet operation. No gear noise and vibration associated with stock differential

• With the Enclosed case, Racers can add diff grease to fine-tune diff action, the covers also help reduce dust and particles on diff gears therefore less maintenance.

• Comes with the newest Brass Spyder Gear (MR2055B) for ultra-smooth action

• Do Not Come with Pinion Gears (you will need 64P Pinion gears of your choice)

Changing Spur Gear Ratio:

1. Remove 3 screws on the covers and remove both covers

2. Loosen the Tension Nut to separate the side gears

3. Allow spider gear pins to recess into the carrier. Depress with a screwdriver if necessary, as shown by the arrows

4. Remove the spur gear

5. Installation is the reverse of removal

600811L

KS2834

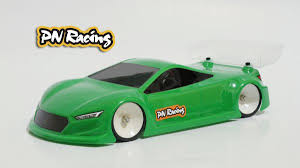

• PN Lexan Body Kit 600800K for Mini-Z MR03 and PN 2.5 Chassis

• Configurable for 98mm wheelbase.
• The body comes unpainted.
• 0.7mm Version


• Kyosho Mini-Z MR-02, MR-03 or PN 2.5W chassis
• 1/28 AWD Chassis e.g. GL Atomic

KSK2830

Orange Bag of KSK Compound

Better grip and long life

Laser marker parts number inside

216YF2

KS1138

Brand New Low Profile Tires

PN Racing KS & KS-M compounds are our most popular race proven tire compounds

PN Racing KS Compound: its known to offer more grip as the tire heat up and long duration.

PN Racing KS-M Compound: its known to offer quick warm up and good grip from beginning of the race, also suitable for tracks in cold climate.

After months of R&D, we can finally release our brand new low profile high performance tires.

Our new low profile tires are 1.6mm thick, when its installed on the 20mm rims, the diameter will be 23.2mm.

For stock class you don't have to true these tires, it will be broken in after running on RCP track for one battery pack.

For more advanced classes, only the surface (0.1-0.2mm) needs to be trued.

8.5mm tires

KS Compound

KS1130 Slick Front Tire (8.5mm) SUPER SOFT

KS1134 Slick Front Tire (8.5mm) SOFT

KS1138 Slick Front Tire (8.5mm) MEDIUM

KS1142 Slick Front Tire (8.5mm) Hard

KS-M Compound

KSM530 Slick Front Tire (8.5mm) SUPER SOFT

KSM534 Slick Front Tire (8.5mm) SOFT

KSM538 Slick Front Tire (8.5mm) MEDIUM

KSM542 Slick Front Tire (8.5mm) Hard

11mm tires

(If you use 14mm rear tire, this is perfect front tire to use with 11mm wheels)

KS Compound

KS2130 Slick Tire (11mm) SUPER SOFT

KS2134 Slick Tire (11mm) SOFT

KS2138 Slick Tire (11mm) MEDIUM

KS2142 Slick Tire (11mm) Hard

KS-M Compound

KSM630 Slick Tire (11mm) SUPER SOFT

KSM634 Slick Tire (11mm) SOFT

KSM638 Slick Tire (11mm) MEDIUM

KSM642 Slick Tire (11mm) Hard

700506A

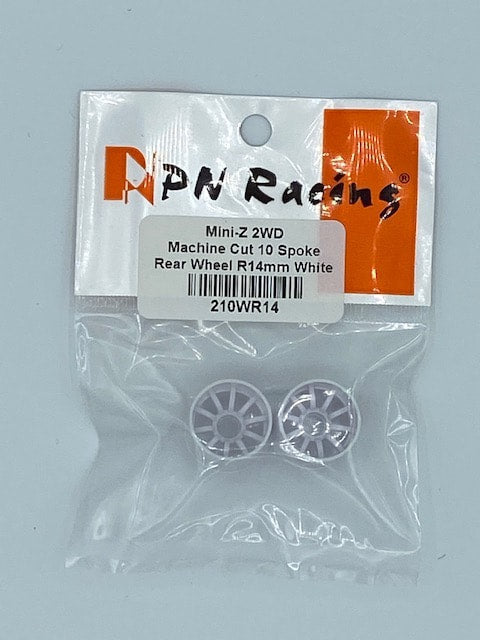

210WR14
